Articulated robot Q-Bot

6-axishandlingpick-and-place

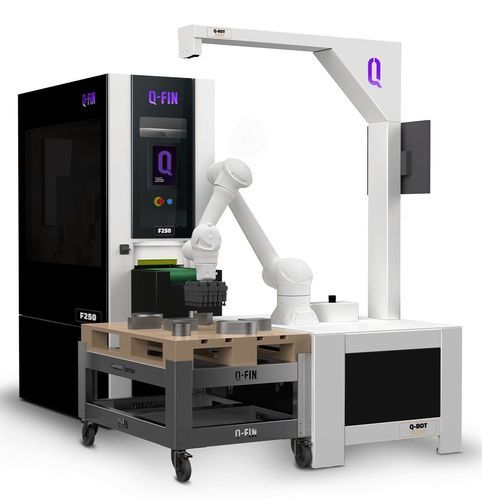

Flexible solution for fully automatic finishing Upgrade your finishing process and produce fully automatically with the Q-Fin Q-Bot. The intermediate solution between human and robot for automatic loading of small sheet metal parts in combination with the Q-Fin F250 finishing machine. - 3D vision camera for product recognition - Picking of undefined small products - Gripper with vacuum or magnetic fixation - Flexible application - Recognition of length direction - User-friendly, easy to teach The Q-Bot Q250 from Q-Fin is a user-friendly, flexible robot arm designed for gripping and moving small, undefined products. Thanks to the integrated 3D vision camera, also known as Eye-Q, the Q-Bot can detect the length orientation of the products and efficiently pick them up using either vacuum or magnetic clamping. With a maximum workpiece weight of 10 kg and a handling range from 50 x 50 mm up to 200 x 200 mm, the Q250 is ideal for various applications. The machine is suitable for products with a minimum thickness of 1 mm and a maximum thickness of 12 mm. The Q-Bot is easy to implement and can be combined with the F250 for even greater flexibility in your production line. - Maximum workpiece weight: 10 kg - Product fixation: Vacuum or magnet system - Minimum product thickness: 1 mm - Maximum product thickness: 12 mm - Minimum product dimensions: 50 x 50 mm - Maximum product dimensions: 200 x 200 mm - Machine power supply: 400 V | 50 Hz | 16 A, Power supply from F250 - Pallet size: 1200 x 800 mm - Surface dimensions (L x W): 250 x 250 mm - Dimensions (L x W x H): 1500 x 1250 x 2400 mm - Suitable for: F250
