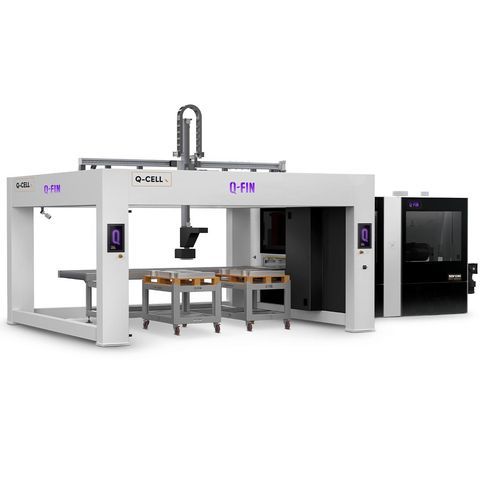

Robotic loading cell Q-Cell Cartesian

finishingunloadinghandling

Smart automation for maximum precision Automate your handling process with the Q-Cell Cartesian. Thanks to the in-house developed Eye-Q vision system, each workpiece is automatically recognized, positioned, and processed fully automatically in combination with a 1200 or 1500 mm wide Q-Fin finishing machine. - 3D vision camera for product recognition - Undefined product picking - Gripper with vacuum or magnetic fixation - Connected input/output table for batch production - Recognition of length direction - ERP package integration via API - AGV integration possible with Qonnect+ Discover Q-Fin’s Q-Cell Cartesian: a highly accurate and stable automation solution for the automatic loading and/or unloading of sheet metal parts. This cell works with a Cartesian robot system that moves linearly across three axes, ensuring maximum control and reproducibility in your handling process. The real power of this solution lies in the Eye-Q vision system. This in-house developed camera system, built in collaboration with European market leaders in gripping, robotics, and automation, automatically recognizes the position and shape of products on the support surface. Eye-Q controls the Cartesian robot at lightning speed to move each product accurately and safely to the right place in the right orientation for a perfect finish. The Q-Cell Cartesian communicates seamlessly with your Q-Fin finishing machine, so that products are automatically loaded and unloaded. Ideal for those who want to produce 24/7 with maximum precision, minimal error margin, and complete process control. Discover how smart handling takes your production to the next level. - Available as: RC1200, RC1500, CC1200, CC1500 - Maximum workpiece weight: 50 kg - Product fixation: Vacuum or magnet system - Minimum product thickness: 1 mm - Maximum product thickness: 25 mm - Minimum product dimensions: 120 x 120 mm - Maximum product dimensions: 1200 x 800 mm - Machine power supply: 400 V | 50 Hz | 32 A - Pallet size: 1200 x 800 mm - Surface dimensions (L x W): 3000 x 1200/1500 mm - Dimensions (L x W x H): 4700 x 4400 x 4300 mm - Suitable for: F1200, F1500, M1200, M1500, SER1200 and SER1500
