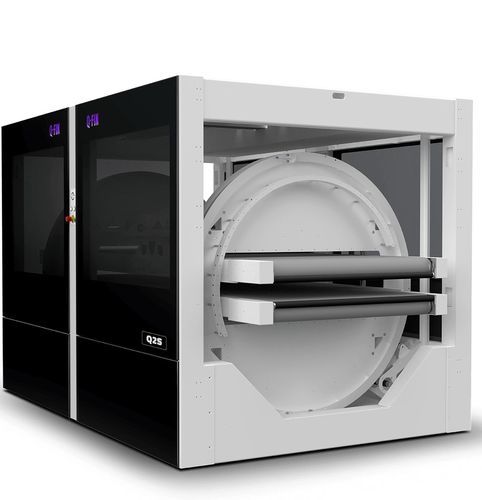

Flip and tilt unit Q2S

The solution for double-sided finishing in one pass Super-efficient double-sided finishing is done with the Q2S turnaround station. This turnover unit, combined with two Q-Fin machines, offers batch-wise double-sided processing with unprecedented throughput speed. For sheet metal parts up to 1200 mm or 1500 mm wide. - Double-sided processing with very high output - Optimal process control with continuous quality - Ergonomic operation by one operator - User-friendly HMI touchscreen - Includes 3-meter input and output table - In line with 2 Q-Fin automatic finishing machines - Batch processing with unrivalled throughput speed According to Q-Fin’s philosophy, the products can only be provided with a large radius at high speed giving pressure on one side. Herefore the products have to be turned. To do this Q-Fin has developed the reversing station Q2S in 1200 and 1500 mm wide. The Q2S comes with an CSI input table and CSO output table. In combination with 2 Q-Fin finishing machines and wet-working extractors, you get the perfect double-sided finishing solution. By including the Q2S in the deburring line, the product is deburred on both sides and provided with a (large) edge rounding in a turnaround. Due to the batchwise import and export of products, the Q2S creates an unprecedentedly high output, less physical strain and optimal process control. Technical Specifications / Features: - Double-sided finishing in one pass - Batch-wise processing for high throughput - For sheet metal parts up to 1200 mm or 1500 mm wide - Conveyor belt speed: 0.3-8 m/min - Maximum conveyor belt load: 200 kg/m - Minimum product thickness: 1.5 mm - Maximum product thickness: 50 mm - Minimum product dimensions: 120 x 120 mm - Machine power supply: 400 V | 50 Hz | 16 A | 7.5 kW - Dimensions (Q2S1200): 4094 x 2180 x 2048 mm - Dimensions (Q2S1500): 4094 x 2506 x 2227 mm - Weight (Q2S1200): 3,200 kg - Weight (Q2S1500): 3,600 kg - Suitable for: F1200, M1200, SER1200 (Q2S1200); F1500, M1500, SER1500 (Q2S1500) Applications: Handling, Transportation, Turning
