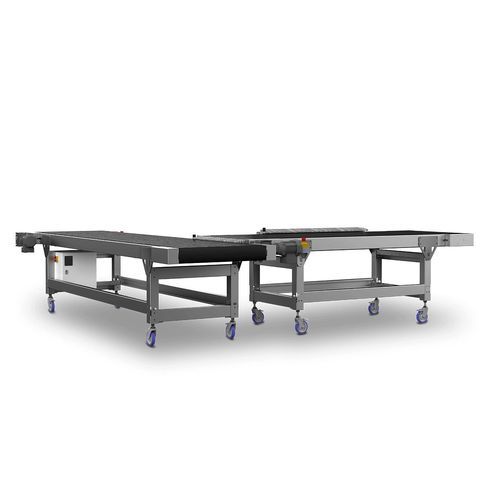

Flat sheet metal conveyor system CSR

for machinesautomatedfloor-mounted

Efficient solution for returning products to the operator Double efficiency and save time with the CSR return conveyor. The products that have already been processed are easily returned to the operator at the input side of the machine and can be finished on the other side when desired or stacked. - Available for all Q-Fin finishing machines - Doubling efficiency - Saving labour cost - Minimal effort for the operator - Suitable for variety of products - Solid, mobile construction - Stepless adjustable speed The Q-Fin CSR400 and CSR800 return conveyor belts improve workflow and create an efficient solution for handling sheet metal parts without the need for an additional operator. The use of a return conveyor on a Q-Fin deburring and finishing machine means that products already finished on one side are returned to the operator on the infeed side of the machine. If desired, the operator can put the products through the machine again to finish the second side of the product as well. Or he can stack the products so that they can proceed to the next production step. The result is more efficient material handling and labour savings. The independently adjustable speed control of the return belt, which is matched to the throughput of the Q-Fin deburring machine, enables the operator to process small to large series of products with little effort. There is a suitable return conveyor for every type of Q-Fin machine. The CSR400 consists of a 400 mm wide conveyor belt with a chute and is suitable for installation on the F200. The other return belts consist of a set of two tables. One behind and one on the right side of the deburring machine. The frames of these separate tables are fitted with wheels so that you can easily move them to the side when not in use. - Conveyor belt speed: 0.3-8 m/min - Maximum conveyor belt load: 75 kg/m (CSR 400), 300 kg/m (CSR 800) - Minimum product dimensions: 250 x 250 mm (CSR 400), 120 x 120 mm (CSR 800) - Maximum product dimensions: 250 x 250 mm (CSR 400), depends on table and product geometry (CSR 800) - Machine power supply: 230 V | 50 Hz - Dimensions (L x W x H): 2837 x 784 x 992 mm (CSR 400), machine dependent x 1131 x 881 mm (CSR 800) - Weight: 215 kg (CSR 400), machine dependent (CSR 800) - Suitable for: F250 (CSR 400), F800, F1200, F1500, M1200, M1500, SER1200 and SER1500 (CSR 800)
