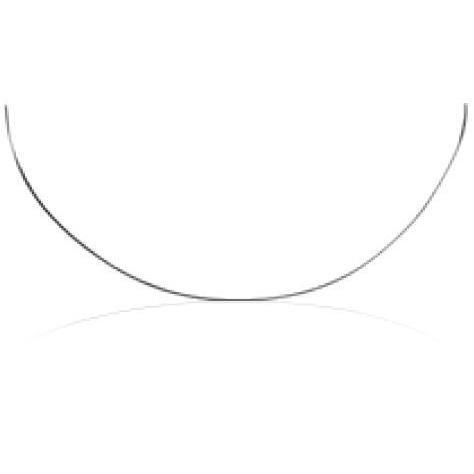

Steel wire rope GC-TT-77819-034

tungstenflexible

Product introduction
Dual-layer composite design combining high wear resistance with flexibility. Suitable for applications requiring high strength, fatigue resistance and environmental adaptability.

Product parameters
Construction | Product code | Diameter (mm) | Breaking force (N) | Material
7*7+8*19 | GC-TT-77819-034 | 0.34 | ≥288 | Tungsten wire tendon
7*7+8*19 | GC-TT-77819-045 | 0.45 | ≥350 | Tungsten wire tendon
7*7+8*19 | GC-TT-77819-060 | 0.60 | ≥400 | Steel wire tendon

Note
The specifications listed above represent mainstream models currently in production. Customers can request customizations including different braiding structures and diameters (e.g. 0.5 mm, 0.8 mm) to meet specific application requirements.

Features / Technical specifications

• Construction: 7*7+8*19
• Main materials: tungsten wire tendon, steel wire tendon (model dependent)
• Standard diameters: 0.34 mm, 0.45 mm, 0.60 mm; other diameters available on request (e.g. 0.5 mm, 0.8 mm)
• Breaking force: ≥288 N (0.34 mm), ≥350 N (0.45 mm), ≥400 N (0.60 mm)
• Design: dual-layer composite to balance wear resistance and flexibility
• Applications: suitable for uses with high demands on strength, fatigue resistance and environmental adaptability
• Customization available: braiding structure and diameter
