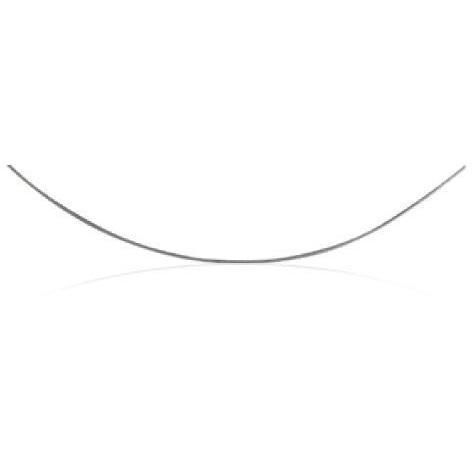

Static rope GC-TT-719-050

steelabrasion-resistanthigh-resistance

Product Introduction

• High tensile strength
• High wear resistance
• Medium flexibility — not suitable for applications with small bending radii

Product Parameters
Construction | Product Code | Diameter (mm) | Breaking Force (N) | Material
7*19 | GC-TT-719-050 | 0.5 | ≥400 | Tungsten tendon rope
7*19 | GC-TT-719-060 | 0.6 | ≥550 | Tungsten tendon rope
7*19 | GC-SS-719-100 | 1.0 | ≥659 | Steel wire tendon rope
7*19 | GC-SS-719-120 | 1.2 | ≥900 | Steel wire tendon rope
7*19 | GC-SS-719-150 | 1.5 | ≥1200 | Steel wire tendon rope
7*19 | GC-SS-719-180 | 1.8 | ≥1800 | Steel wire tendon rope
7*19 | GC-SS-719-200 | 2.0 | ≥2550 | Steel wire tendon rope
7*19 | GC-SS-719-250 | 2.5 | ≥4500 | Steel wire tendon rope
7*19 | GC-SS-719-300 | 3.0 | ≥6000 | Steel wire tendon rope
7*19 | GC-SS-719-400 | 4.0 | ≥12000 | Steel wire tendon rope

Note: The specifications listed above represent mainstream production models. Customers can request customized options for different braiding structures and diameters according to application requirements (examples: 0.4 mm, 0.8 mm).

Characteristics / Technical Specifications

• Construction: 7*19
• Example product codes: GC-TT-719-050, GC-TT-719-060, GC-SS-719-100, GC-SS-719-120, GC-SS-719-150, GC-SS-719-180, GC-SS-719-200, GC-SS-719-250, GC-SS-719-300, GC-SS-719-400
• Diameter (examples): 0.5 mm, 0.6 mm, 1.0 mm, 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm (custom diameters available, e.g. 0.4 mm, 0.8 mm)
• Breaking force range (examples): ≥400 N (0.5 mm) to ≥12000 N (4.0 mm)
• Materials: Tungsten tendon rope, Steel wire tendon rope
• Performance: High tensile strength, high wear resistance, medium flexibility
• Customization: Braiding structure and diameter customizable on request
