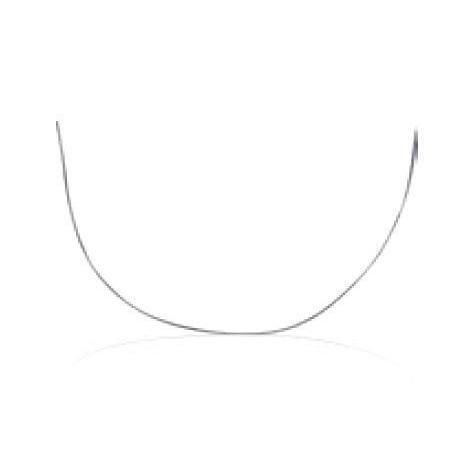

Steel wire rope GC-TT-737-050

tungstenflexible

Product introduction

• High fatigue resistance
• Moderate wear resistance
• High flexibility, suitable for small bending radii

Product parameters
Construction | Product code | Diameter (mm) | Breaking force (N) | Material
7x37 | GC-TT-737-050 | 0.5 | ≥350 | Tungsten wire tendon rope
7x37 | GC-TT-737-066 | 0.66 | ≥800 | Tungsten wire tendon rope
7x37 | GC-SS-737-400 | 4 | ≥12000 | Steel wire tendon rope
Note: The listed specifications represent mainstream models currently in production. Customers may request customized diameters, braiding structures and materials (for example 0.6 mm or 0.8 mm).

Features / technical specifications

• Construction: 7x37
• Typical product codes and specs: GC-TT-737-050 (0.5 mm, breaking force ≥350 N, tungsten); GC-TT-737-066 (0.66 mm, breaking force ≥800 N, tungsten); GC-SS-737-400 (4 mm, breaking force ≥12000 N, steel)
• Material types: tungsten wire tendon rope, steel wire tendon rope
• Performance: high fatigue resistance; suitable for small bending radii; moderate wear resistance
• Customization: diameters, braiding structure and materials available on request
