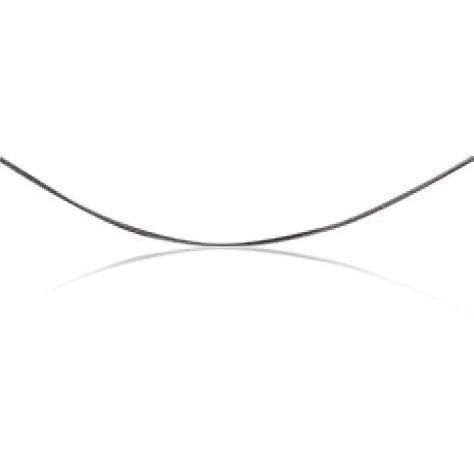

Steel wire rope GC-TT-77-050

tungstenrigid

Product Introduction

• High strength
• Simple structure and low cost
• Low flexibility; not suitable for applications with small bending radii

Product Parameters
Construction | Product Code | Diameter (mm) | Breaking Force (N) | Material
7*7 | GC-TT-77-050 | 0.5 | ≥490 | Tungsten tendon rope
7*7 | GC-TT-77-060 | 0.6 | ≥550 | Tungsten tendon rope
7*7 | GC-SS-77-100 | 1 | ≥856 | Steel tendon rope
7*7 | GC-SS-77-120 | 1.2 | ≥740 | Steel tendon rope
7*7 | GC-SS-77-150 | 1.5 | ≥2039 | Steel tendon rope
7*7 | GC-SS-77-200 | 2 | ≥2700 | Steel tendon rope

Note
The listed specifications represent mainstream models currently in production. Diameters such as 0.4 mm and 0.8 mm can be produced on request for the 7*7 construction.

Features / Technical specifications

• Construction: 7*7
• Available product codes: GC-TT-77-050, GC-TT-77-060, GC-SS-77-100, GC-SS-77-120, GC-SS-77-150, GC-SS-77-200
• Diameters (mm): 0.5; 0.6; 1; 1.2; 1.5; 2 (customizable examples: 0.4, 0.8)
• Breaking force (N): ≥490; ≥550; ≥856; ≥740; ≥2039; ≥2700 (depending on diameter and material)
• Materials: Tungsten, Steel wire
• Main characteristics: High strength; simple structure and low cost; low flexibility, not suitable for small bending radii
