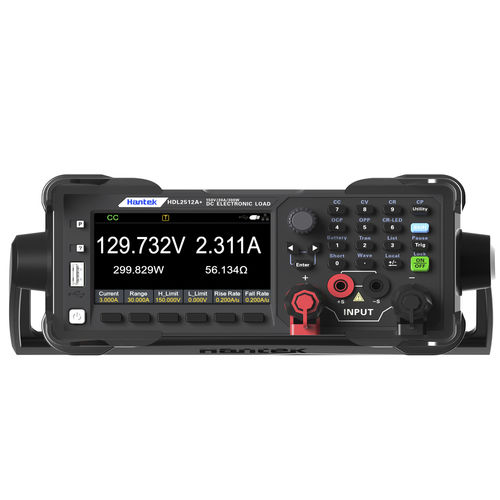

DC electronic load HDL2500+ Series

LANRS-232with USB interface

HDL2500+ series DC electronic loads cover a wide range of voltage and current, with high accuracy and resolution, to accurately test the performance of the equipment, without missing any details. A variety of test functions, dynamic test and automatic test functions, fully meet the diversified needs of users. Provides convenient remote communication, supports SCPI protocol, realises seamless connection with design and development and production line test system, and makes the test process smoother. Whether it's testing various batteries, AC-DC/DC-DC modules, chargers, electronic components and other products, HDL2500+ series electronic loads can accurately and quickly complete the test. - The 4.3-inch LCD color display provides users with a clear and intuitive visual experience; Resolution up to 0.1mV/1mV/ 0.1mA to accurately test the performance of the device under test; - Timing control list programming for accurate, high-speed simulation of complex changing currents; - Equipped with USB/LAN/RS232 interfaces, supporting SCPI protocol, convenient for data interaction and remote control; - OCP/OPP test, the instrument automatically captures the OCP and OPP points and determines whether the test result exceeds the set specifications; - With voltage rise/fall time test function and ripple measurement function; - Voltage and current measurement rate up to 100KHz; - Remote measurement terminals are provided to compensate for voltage drop across the line and improve remote measurement accuracy; - Four operating modes: constant voltage/current/resistance/power, easy to simulate a variety of characteristics of loads;
