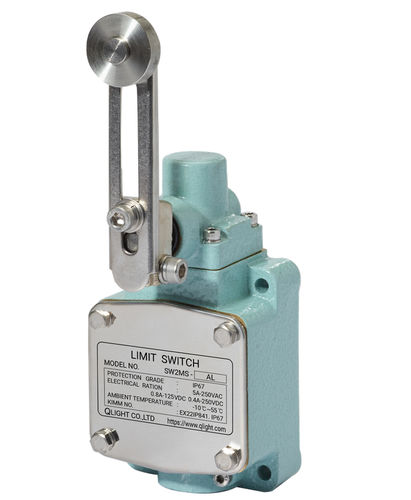

Conveyor limit switch SW2MS-AL

anti-corrosionIP67chemical-resistant

The SW2MS-AL is an adjustable roller lever limit switch designed for corrosive and harsh industrial environments. It uses STS316L stainless steel construction and an engineered mechanical design for long-term stable operation.

Key features

• STS316L stainless steel body and head for high corrosion and salt resistance, suitable for marine and chemical gas environments.
• External bolts, nuts and components made of stainless steel for enhanced corrosion resistance in polar and offshore conditions.
• High mechanical strength to absorb irregular motions transmitted to the actuator and improve operational stability.
• Proprietary dual-return spring system to maintain consistent operating characteristics after prolonged use.
• Adjustable roller lever actuator type.
• Optional temperature variants on request: Cold-Resistant Type (-40°C to +40°C) and Heat-Resistant Type (+50°C to +120°C).

Typical applications

• Overhead cranes and large-scale conveyors.
• Heavy industrial machinery and outdoor plant facilities.
• Ship deck machinery and port cargo handling equipment.
• Chemical plants handling corrosive acidic or alkaline gases.

Construction & general info

• Actuator type: Adjustable roller lever.
• Dimensions (W×H×L): 68 × 88.5 × 168.8 mm.
• Materials: Body, head, bolts & nuts, roller and spring rod made of stainless steel.
• Protection rating: IP67.

Technical specifications

• Protection Grade: IP67.
• Mechanical life: Over 0.3 million operations.
• Electrical life: Over 0.1 million operations.
• Allowable operating cycle: Mechanical — up to 120 operations/min; Electrical — up to 30 operations/min.
• Insulation resistance: 100 MΩ min. at 500 V DC.
• Initial resistance: 50 mΩ max.
• Dielectric strength: Between non-continuous terminals — 1,000 V AC, 50–60 Hz for 1 min; Between each terminal and non-conducting metal part — 2,000 V AC, 50–60 Hz for 1 min.
• Shock resistance: Destruction approx. 1,000 m/s² (100 G); Malfunction approx. 250 m/s² (25 G).
• Vibration resistance: 10–55 Hz, 1.5 mm double amplitude.
• Allowable operating temperature range: -10°C to +55°C; Cold-Resistant Type: -40°C to +40°C; Heat-Resistant Type: +50°C to +120°C; RMRS-compliant: -55°C to +65°C.
• Ambient humidity range: 45–85% RH.
• Certificate: product page displays certificate icon.
