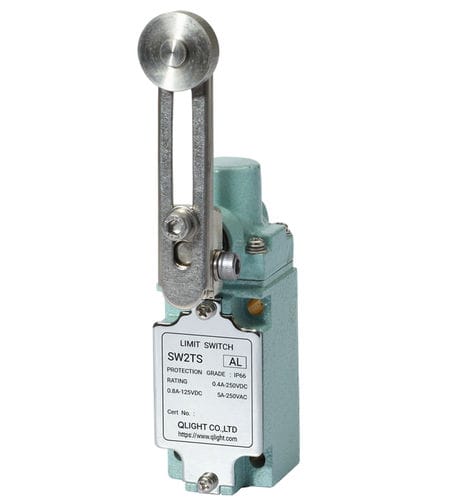

Crane limit switch SW2TS-AL

for conveyorIP66with roller lever

Overview
The SW2TS-AL is an adjustable roller lever limit switch engineered for heavy-duty industrial use in harsh and corrosive environments. Constructed mainly from STS316L stainless steel and designed for long-term stable operation, it is suitable for marine, offshore and chemical plant applications.

Key features

• Body and head made of STS316L stainless steel for enhanced corrosion and salt resistance, ideal for marine and aggressive-gas environments.
• Proprietary dual-return spring system providing consistent actuation characteristics over prolonged service life.
• All external bolts, nuts and components in stainless steel to resist corrosion in polar and offshore conditions.
• Cold-resistant micro switches, low-temperature grease and silicone packing available for reliable operation at very low temperatures.
• Heavy-duty mechanical design with dimensions and mounting holes compatible with standard switch footprints.
• Adjustable roller lever actuation for flexible installation and detection angles.

Applications

• Overhead cranes, large conveyors and heavy industrial machinery requiring reliable position detection.
• Outdoor plant equipment, ship deck machinery and port cargo handling systems.
• Chemical processing plants where acidic or alkaline corrosive gases are present.

Technical specifications

• Model: SW2TS-AL
• Protection grade: IP66
• Dimension: 43(W) × 51.3(H) × 200(L) mm
• Materials: Body, Head, Bolt & Nut, Roller, Spring Rod — Stainless Steel (STS316L)
• Mechanical life: Over 2,000,000 operations
• Electrical life: Over 200,000 operations
• Allowable operating cycle: Mechanical — max. 120 operations/min; Electrical — max. 30 operations/min
• Insulation resistance: 100 MΩ min. at 500 V DC
• Initial contact resistance: 50 mΩ max.
• Dielectric strength: Between non-continuous terminals — 1,000 V AC, 50–60 Hz for 1 min; Between each terminal and non-conductive metal part — 2,000 V AC, 50–60 Hz for 1 min
• Shock resistance: Destruction approx. 1,000 m/s² (100G); Malfunction approx. 250 m/s² (25G)
• Vibration resistance: 10–55 Hz, 1.5 mm double amplitude
• Operating temperature range: Standard — -10°C to +55°C; Cold-resistant type — -40°C to +40°C; Heat-resistant type — +50°C to +120°C
• Ambient humidity range: 45–85% RH
• Inrush current (typical): NC (normally closed) max. 20 A; NO (normally open) max. 10 A
• Designed for heavy-duty industrial applications including marine/offshore and corrosive chemical environments
