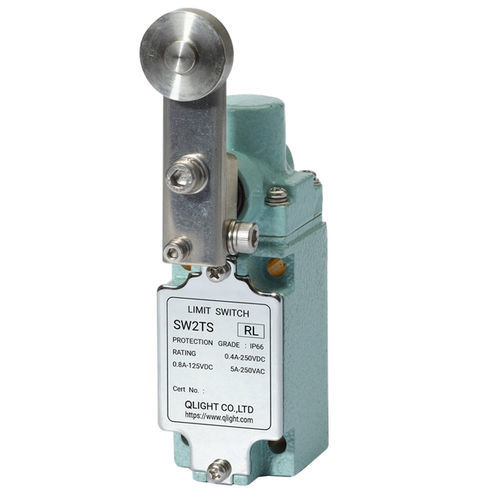

Crane limit switch SW2TS-RL

for conveyorlargeanti-corrosion

The SW2TS-RL is a heavy-duty roller lever limit switch designed for harsh industrial and marine environments. It combines STS316L stainless steel construction, configurable temperature variants and a proprietary dual-return spring system to deliver stable long-term operation across wide temperature ranges.

Product features

• Body and head made of STS316L stainless steel, providing corrosion and salt resistance suitable for marine and chemical gas environments
• Stable operational characteristics maintained after prolonged use via a proprietary dual-return spring system
• Stainless-steel external bolts, nuts, rollers and components for enhanced corrosion resistance in polar and offshore conditions
• Cold-resistant micro switches, low-temperature grease and silicone packing ensure reliable low-temperature performance
• Heavy-duty dimensions and mounting holes identical to standard switches for direct replacement
• Typical applications: overhead cranes; large conveyors; heavy industrial machinery; outdoor plant facilities; ship deck machinery; port cargo handling equipment; chemical plants with corrosive acidic or alkaline gases
• Available variants: Cold-Resistant Type (-40°C to +40°C) and Heat-Resistant Type (+50°C to +120°C)

Technical specifications

• Protection grade: IP66
• Mechanical life: Over 2,000,000 operations
• Electrical life: Over 200,000 operations
• Allowable operating cycle: Mechanical — max. 120 operations/min; Electrical — max. 30 operations/min
• Insulation resistance: 100 MΩ min. at 500 V DC
• Initial resistance: 50 mΩ max.
• Dielectric strength: Between non-continuous terminals — 1,000 V AC (50–60 Hz) for 1 min; Between each terminal and non-conducting metal part — 2,000 V AC (50–60 Hz) for 1 min
• Shock resistance: Destruction — approx. 1,000 m/s² (100 G); Malfunction — approx. 250 m/s² (25 G)
• Vibration resistance: 10–55 Hz, 1.5 mm double amplitude
• Allowable operating temperature range: Standard — -10°C to +55°C; Cold-Resistant Type — -40°C to +40°C; Heat-Resistant Type — +50°C to +120°C
• Ambient humidity range: 45–85% RH
• Inrush current: NC (normally closed) — Max. 20 A; NO (normally open) — Max. 10 A
• Certificates: none listed
