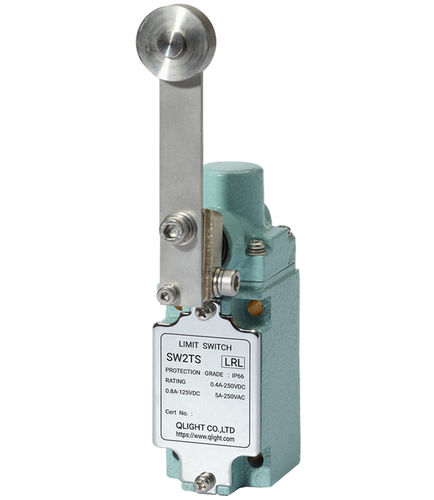

Crane limit switch SW2TS-LRL

for conveyorlargeanti-corrosion

Overview

Adjustable heavy-duty large roller lever limit switch SW2TS-LRL designed for corrosive, marine and extreme-temperature environments. Constructed primarily in STS316L stainless steel with stainless external components for long-term stable operation and enhanced corrosion resistance.

Key features

• Robust construction: body and head made of STS316L stainless steel for high corrosion and salt resistance, suitable for marine and chemical gas environments
• Stable operation maintained after prolonged use via a proprietary dual-return spring system
• External bolts, nuts and components in stainless steel to resist corrosive offshore and polar conditions
• Reliable performance in low temperatures using cold-resistant micro-switches, low-temperature grease and silicone packing
• Heavy-duty dimensions and mounting holes identical to standard switches for straightforward replacement
• Typical applications: overhead cranes, large conveyors, heavy industrial machinery, outdoor plants, ship deck machinery, port cargo handling, chemical plants with acidic or alkaline corrosive gases
• Custom temperature variants available on request: Cold-Resistant Type (-40°C to +40°C) and Heat-Resistant Type (+50°C to +120°C)

Technical specifications

• Model: SW2TS-LRL
• Dimensions: 43 (W) × 51.3 (H) × 192.5 (L) mm
• Materials: Body, Head, Bolt & Nut, Roller, Spring Rod — Stainless Steel (STS316L for body/head; stainless external bolts/nuts/components)
• Protection rating: IP66
• Mechanical life: Over 2,000,000 operations
• Electrical life: Over 200,000 operations
• Allowable operating cycle: Mechanical max. 120 operations/min; Electrical max. 30 operations/min
• Insulation resistance: 100 MΩ min. at 500 V DC
• Initial contact resistance: 50 mΩ max.
• Dielectric strength: Between non-continuous terminals: 1,000 V AC, 50–60 Hz for 1 minute; Between each terminal and non-conducting metal part: 2,000 V AC, 50–60 Hz for 1 minute
• Shock resistance: Destruction approx. 1,000 m/s² (100G); Malfunction approx. 250 m/s² (25G)
• Vibration resistance: 10–55 Hz, 1.5 mm double amplitude
• Operating temperature range: Standard -10°C to +55°C; Cold-Resistant Type: -40°C to +40°C; Heat-Resistant Type: +50°C to +120°C
• Ambient humidity range: 45–85% RH
• Inrush current: NC (normally closed) max. 20 A; NO (normally open) max. 10 A
