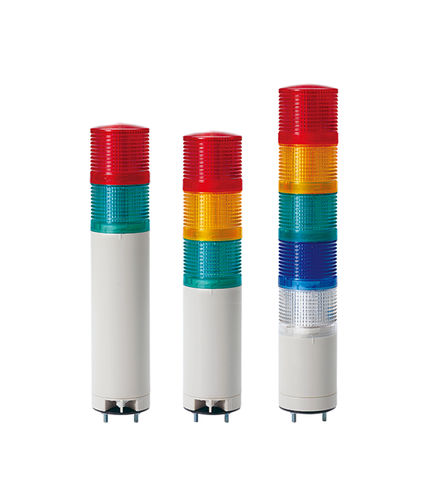

LED stack light QTG50ML

flashingsteady2-color

Overview
Ø50 mm direct-mount modular LED signal tower for steady or flashing indication. Available as QTG (standard) and QTGA (integrated lens/cover) variants. Optional built-in buzzer (Max. 85 dB at 1 m) and high-volume buzzer variants available.

Product Features

• Modular construction: add/remove layers and change color order without tools via Lock-type structure.
• Special color-diffusing lens for improved visibility at distance.
• Selectable steady (continuous) or flashing modes; flashing rate typically 60–80 flashes/min.
• QTGA variant with integrated lens/cover for a simplified appearance.
• Optional buzzer: standard Max. 85 dB at 1 m; high-volume (100 dB) and buzzer-volume-controllable types optionally available.
• Input compatibility with NPN open-collector (direct PLC connection); PNP transistor types supported.
• Pre-wired as standard; M12 connector available on request.

Electrical / Mechanical
Voltage options: DC 12 V, DC 24 V, AC 110–220 V (AC models specified as AC110–220 V; usable AC range 100–240 V for free-voltage types). Diameter: Ø50 mm. Installed height: approx. 116–364 mm depending on number of layers.
Light source current (per 1 layer): DC12 V = 90 mA; DC24 V = 70 mA; AC110–220 V = Max. 55 mA. Buzzer current: DC12 V = 40 mA; DC24 V = 75 mA; AC110–220 V = Max. 55 mA.
Materials: Lens = Polycarbonate (PC); Housing = ABS. Protection rating: IP65 (standard) / IP54 (built-in buzzer type). Ambient operating temperature: -30°C to +50°C.

Model variants (examples shown on this page)

• QTG50ML — Steady
• QTG50ML-BZ — Steady with built-in buzzer
• QTG50MLF — Steady/Flashing
• QTG50MLF-BZ — Steady/Flashing with built-in buzzer
• QTGA50ML — QTGA variant (integrated lens/cover)
• QTGA50ML-BZ, QTGA50MLF, QTGA50MLF-BZ — additional QTGA variants

Colors & Layers
Standard LED colors per layer: R (Red), A (Amber), G (Green), B (Blue), W (White). Configurable from 1 to 5 layers; weight and dimensions depend on the number of layers and options.

Certificates & Compliance

• CE compliant.
• UL listed for selected DC24 V models.
• RoHS compliant.

Characteristics / technical specifications

• Series: QTG / QTGA (Ø50 mm direct mount type).
• Protection: IP65 (standard) / IP54 (built-in buzzer type).
• Operating temperature range: -30°C to +50°C.
• Flashing rate (flashing models): 60–80 flashes/min.
• Light source current (1 layer): DC12 V = 90 mA; DC24 V = 70 mA; AC110–220 V = Max. 55 mA.
• Buzzer current (where fitted): DC12 V = 40 mA; DC24 V = 75 mA; AC110–220 V = Max. 55 mA.
• Typical weights (examples): 1-layer DC ≈ 0.19 kg; 2-layer ≈ 0.27 kg; 3-layer ≈ 0.36 kg; 4-layer ≈ 0.44 kg; 5-layer ≈ 0.53 kg (values vary with options).
• Materials: Lens = PC; Housing = ABS.
• Wiring: Pre-wired standard; M12 connector option available.
• Optional configurations: built-in buzzer, high-volume buzzer, M12 connector, UL-listed 24 VDC model.
