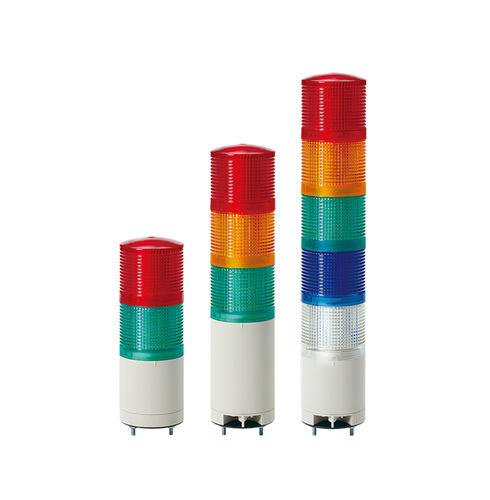

LED stack light QTG60ML

flashingsteady2-color

Overview

• Ø60mm modular direct-mount LED signal tower lights for industrial applications
• Modular steady/flashing LED modules with lock-type connection for tool-free addition and color rearrangement
• QTGA variants feature integrated lens and cover for simplified appearance
• Optional built-in buzzer: max. 85 dB at 1 m (high-volume 100 dB and volume-adjustable options available)
• Pre-wired as standard; M12 connector and 24 VDC UL-listed models available on request
• Certifications: CE, UL (24V DC option); RoHS compliant

Key product description
Ø60mm Direct Mount Type
LED Steady/Flashing Tower Lights
Max. 85 dB (buzzer options available)

Product features

• Modular steady/flashing signal tower lights with lock-type module coupling
• Special color-diffusing lens for good long-distance recognition
• Tool-free module addition and color arrangement change
• QTGA type: integrated lens and cover for a cleaner appearance
• Buzzer output: max. 85 dB at 1 m; optional high-volume 100 dB and volume-adjustable buzzer types
• Supports NPN open-collector transistor input for direct PLC connection (NPN/PNP adaptability)
• Flashing rate: 60–80 flashes/min
• Operating ambient temperature: -30°C to +50°C
• Protection rating: IP65 standard; IP54 for built-in buzzer types
• Standard pre-wired cable; M12 connector available as an option
• 24 VDC UL-listed model optionally provided

Model variants (layers / voltage / weight / colors)
Model group: QTG60ML / QTG60ML-BZ / QTG60MLF / QTG60MLF-BZ / QTGA60ML / QTGA60ML-BZ / QTGA60MLF / QTGA60MLF-BZ

Header: Layers | Voltage | Weight | Colors
1 | DC12V / DC24V / AC110V-220V | 0.26 kg / 0.26 kg / 0.36 kg | R - Red
2 | DC12V / DC24V / AC110V-220V | 0.34 kg / 0.34 kg / 0.44 kg | R - Red; G - Green
3 | DC12V / DC24V / AC110V-220V | 0.43 kg / 0.43 kg / 0.53 kg | R - Red; A - Amber; G - Green
4 | DC12V / DC24V / AC110V-220V | 0.51 kg / 0.51 kg / 0.61 kg | R - Red; A - Amber; G - Green; B - Blue
5 | DC12V / DC24V / AC110V-220V | 0.59 kg / 0.59 kg / 0.69 kg | R - Red; A - Amber; G - Green; B - Blue; W - White

Electrical / acoustic
Light source current (1 layer): DC12V = 105 mA | DC24V = 70 mA | AC110V–220V = Max. 60 mA
Buzzer current: DC12V = 40 mA | DC24V = 75 mA | AC110V–220V = Max. 55 mA
Flashing rate: 60–80 flashes/min

Additional details

• Materials: Lens - PC (polycarbonate); Housing - ABS; Pole - Aluminum
• Protection: IP65 standard; IP54 for built-in buzzer type
• Operating temperature range: -30°C to +50°C
• Certifications: CE, UL (24V DC option), RoHS compliant

Specifications

• Series: QTG / QTGA (Ø60 mm modular signal tower lights)
• Model designation: QTG60ML / QTGA60ML (available with buzzer and flashing variants)
• Diameter: Ø60 mm; Height: 126–399 mm depending on layers and configuration
• Power supply options: DC12V, DC24V, AC110V–220V (AC range AC100V–240V)
• Flashing frequency: 60–80 flashes/min
• Input compatibility: NPN open-collector transistor driven input (PLC direct connect); PNP adaptable
• Standard wiring: Pre-wired; M12 connector optional
• Optional buzzer: Max. 85 dB at 1 m (standard), optional 100 dB high-volume model; volume-adjustable option
• Protection and temperature: IP65 / IP54 (buzzer), -30°C to +50°C
• Certifications: CE, UL (24V DC option), RoHS
