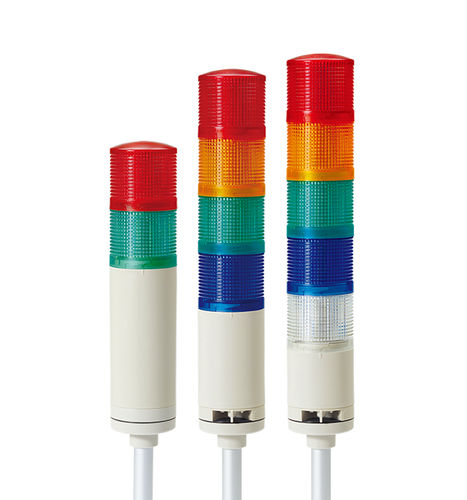

LED stack light QTG60L

flashingsteady2-color

Product overview
Modular LED signal tower for pole mounting, model QTG60L/QTGA60L, Ø60mm diameter, available in steady and steady/flashing variants with optional buzzer.

Key features

• Modular construction allows adding/removing modules and rearranging colors without tools using a lock-type coupling.
• Special color-diffusing PC lens for high visibility at distance.
• QTGA versions feature an integrated lens/cover for a simplified appearance.
• Pole-mount configurations with multiple bracket options to suit installation environments.
• Buzzer options: built-in buzzer (adjustable volume) up to Max.85dB at 1m; optional high-volume (100dB) and two-tone variants available on request.
• Compatible with NPN open-collector inputs (direct PLC connection supported); PNP types also supported.
• Flashing rate: 60–80 flashes/min. Operating temperature: -30°C to +50°C.
• Ingress protection: standard IP65; built-in buzzer type IP54. Pre-wired as standard; M12 connector available on request.

Materials & dimensions

• Lens: PC (polycarbonate).
• Housing: ABS.
• Pole material: Aluminum.
• Diameter: Ø60mm.
• Height range (depending on configuration): 352–635 mm.

Models / variants

• QTG60L — Steady
• QTG60L-BZ — Steady with built-in buzzer
• QTG60LF — Steady/Flashing
• QTG60LF-BZ — Steady/Flashing with built-in buzzer
• QTGA60L — Steady (integrated lens/cover)
• QTGA60L-BZ — Steady with built-in buzzer
• QTGA60LF — Steady/Flashing (integrated lens/cover)
• QTGA60LF-BZ — Steady/Flashing with built-in buzzer

Accessories (mounting & brackets)

• SCREW & NUT
• LB18
• LW18
• QZ18
• SZ18
• QL18
• SL18

Notes

• AC models accept a wide voltage range (100V–240V).
• 24VDC UL-listed model available on request.
• Pre-wired as standard; optional M12 connector wiring on request.

Technical specifications

• Available voltages: DC12V, DC24V, AC110V–220V (AC models: 100V–240V range).
• Protection rating: IP65 (standard), IP54 (built-in buzzer type).
• Operating temperature: -30°C to +50°C.
• Flashing rate: 60–80 flashes/min.
• Light source current (1 layer): DC12V = 0.105A; DC24V = 0.070A; AC110–220V = Max.0.060A.
• Buzzer current (1 layer): DC12V = 0.040A; DC24V = 0.075A; AC110–220V = Max.0.055A.
• Approx. weight by layers (DC12V / DC24V / AC110–220V): 1 layer = 0.26kg / 0.26kg / 0.36kg; 2 layers = 0.34kg / 0.34kg / 0.44kg; 3 layers = 0.43kg / 0.43kg / 0.53kg; 4 layers = 0.51kg / 0.51kg / 0.61kg; 5 layers = 0.59kg / 0.59kg / 0.69kg.
• Available colors per layer count: 1-layer: R (Red); 2-layer: R, G (Green); 3-layer: R, A (Amber), G; 4-layer: R, A, G, B (Blue); 5-layer: R, A, G, B, W (White).
• Certifications: CE, UL (24VDC UL-listed model option); RoHS compliant.
