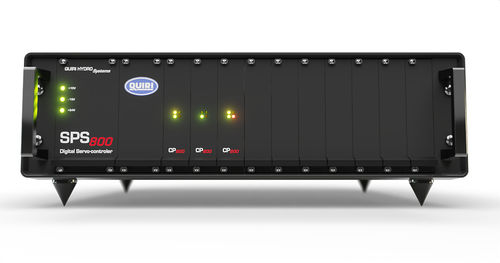

Cylinder control system SPS 800

digitalindustrialfor hydraulic tests

Digital controller SPS 800 is a controller for servohydraulic systems. Designed to be connected directly with servo-actuators, SPS 800 can easily conduct the main type of mechanical tests: Fatigue, characterization, simulation. SPS 800 can be also directly connected to hydraulic test benches or stations to conduct fluid type test: pressure pulsation, flow/pressure characterization, simulation, fatigue, pressure shock. Multi axis combined with multi test system, SPS 800 can control up to 12 channels depending on the test configuration. Hardware: 16 bits digital controller rack with supervision PC and optional remote control. AVAILABLE CONFIGURATIONS: SPS 800 LT: desktop SPS 800 ST: small cabinet 19" (industrial PC+ UPS) SPS 800 B/C: large size 19" cabinet , multi - rack, to control several test benches or a whole laboratory. Software: SPS 800 SOFT: Sensors and servo-valve setting, PID and advance close loop regulation setting, digital I/O programming, real time data visualisation, cyclic and ramp test, threadholds setting, data acquisition and analyze.
