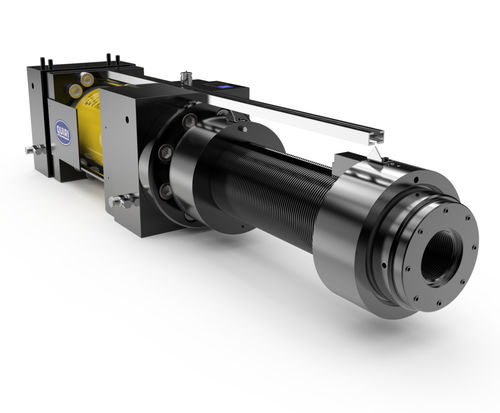

Hydraulic servo-cylinder HIFI seriesdouble-roddouble-actingfor the automotive industry
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- double-rod
- Configuration
- double-acting
- Applications
- for the automotive industry
- Stroke
Max.: 6,000 mm
(236.22 in)Min.: 200 mm
(7.874 in)- Force
Max.: 800 kN
Min.: 10 kN
Description
HiFi aero actuators are ultra low friction actuators, especially dedicated to aeronautic structural tests. Availaible in single or double ended rod, long stroke.
HIFI aero ST singled ended rod Ultra low friction Structural static tests Force: 10 kN to 800 kN
Strokes: 200mm to 6000mm.
HIFI aero double ended rod Ultra low friction Structural fatigue tests Force: 10 kN to 500 kN
Strokes: 200mm to 2000mm.
Mechanical stroke limitation system in option, in order to protect the structure under test angainst electronic or hydraulic failures.
