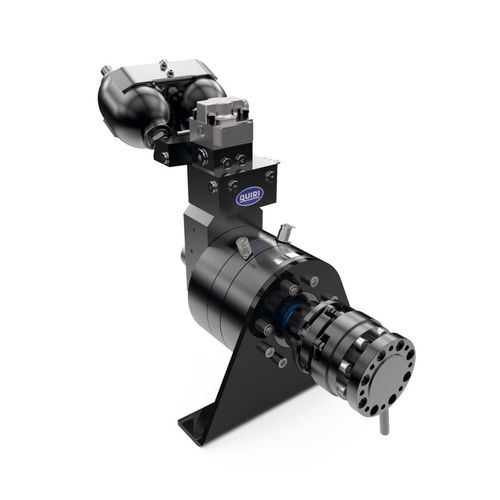

Hydraulic servo-cylinder HIFI R, HSR seriesdouble-actingfor the automotive industry
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- double-acting
- Applications
- for the automotive industry
- Torque
Max.: 48,000 Nm
(35,402.983 ft.lb)Min.: 228 Nm
(168.164 ft.lb)
Description
HiFi actuators are high efficiency rotary actuators especially adapted to close loop control. Equipped with reinforced bearings,these actuators are dedicated to mechanical and dynamic tests fatigue, characterization,durability...
HiFi R actuator Torque : de 228 à 48000 Nm Frequency: maxi 2 Hz Single blade : rotary angle 270° Double palette : rotary angle 90° For low frequency use HiFi HSR actuator Torque : de 228 à 48000 Nm Frequency: up to 10 Hz Double blade actuator with drain Adapted to high speed and cadency Accessoiries Angle sensor: RVDT or encoder Rigid torsionnal coupling Torque sensor Mounting bracket Servovalve Hydraulic function block
