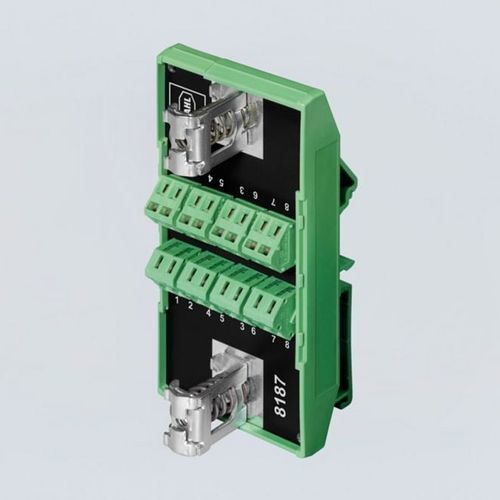

Ethernet terminal block 8187/10-0DIN rail-mountedexplosion-proof
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Other characteristics
- Ethernet, explosion-proof
- Cross-section
Max.: 1.5 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)- Current
0.5 A
- Nominal voltage
60 V
Description
Product Description - Network technology Ethernet terminal For Zone 1
Highlights - For use in Zone 1 and Zone 2
In type of protection Ex e
Easy connection thanks to spring clamp terminals
Data rate up to 1000 Mbit/s
Functional Description - This terminal is designed for connection of Ethernet cables in hazardous areas. The connection technology commonly used for data transmission such as RJ45 plug connector can be used directly only in the safe area, while the Ethernet terminal with type of protection Ex e allows for the economical use in Ex enclosures and simple mounting.
EXPLOSION PROTECTION
Application range (zones) - 1, 2
IECEX gas certificate - IECEx IBE 12.0029 U
IECEx gas explosion protection - Ex eb IIC Gb
ATEX gas certificate - IBExU 12 ATEX 1085 U
ATEX gas explosion protection - II 2 G Ex eb IIC Gb
Certificates - ATEX (IBE), Brazil (ULB), IECEx (IBE)
ELECTRICAL DATA
Transfer rate - 10/100/1000 BaseT
Power over Ethernet - Yes
