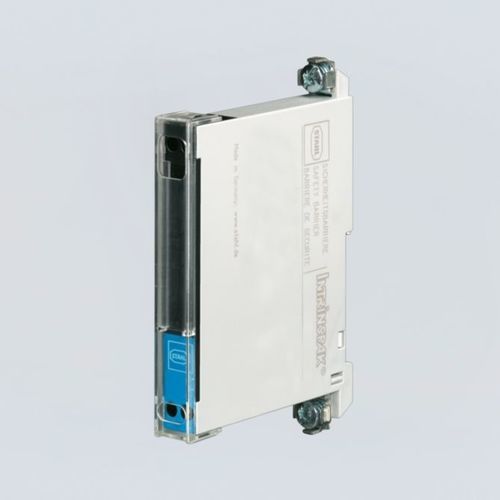

Intrinsically safe electrical safety barrier 9001/00-280-020-101

ATEXIECExrobust

For the intrinsically safe operation of a wide range of devices, such as HART transmitters, solenoid valves, sensors, potential-free contacts and many more Compact and space-saving devices that are easy to install on a DIN rail Quick to install as barriers can be simultaneously snapped onto the rail and connected to PE Functional Description - The series 9001 INTRINSPAK single-channel safety barriers enable the intrinsically safe operation of virtually all field devices. The comprehensive portfolio and the combination of safety barriers cover a wide variety of signals. The devices are incredibly robust and require little space. The back-up fuse is a convenient feature as it is standardised for all variants. Particularly suitable for - Non-contact position sensor Explosion Protection Application range (zones) - 2 Ex interface zone - 0, 1, 2, 20, 21, 22 ATEX dust certificate - PTB 01 ATEX 2088 X IECEx dust certificate - IECEx PTB 09.0001X ATEX gas certificate - PTB 01 ATEX 2088 X IECEX gas certificate - IECEx PTB 09.0001X FMus certificate - 3011002 IECEx gas explosion protection - Ex ec [ia Ga] IIC T4 Gc IECEx dust explosion protection - [Ex ia Da] IIIC ATEX gas explosion protection - II 3 (1) G Ex ec [ia Ga] IIC T4 Gc ATEX dust explosion protection - II (1) D [Ex ia Da] IIIC Marking FMus - NONINCENDIVE FOR, Class I, Div. 2, Groups A,B,C,D; T4; Class I, Zone 2, Group IIC T4 IS connections for Class I,II,III, Div. 1, Groups A,B,C,D,E,F,G; Class I, Zone 0, Groups IIC/IIB Hazardous location when inst. per doc. 90 016 11 31 1
