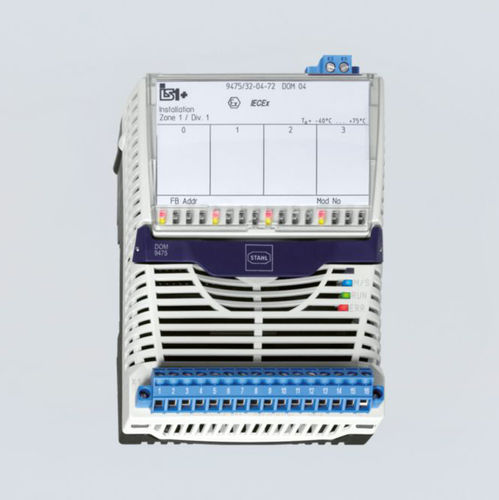

Digital output module 9475/32-04-72

remotefor hazardous locations4-channel

Max. power consumption: 6.00 W Ex interface zone: 1, 2, 21, 22 Number of channels: (depends on nominal output current), 4 (3) Ex i inputs Ex i output rated operation: 11.7 V/95 mA, 12.3 V/75 mA Highlights - 4 channels for I.S. hydraulic and solenoid valves up to 95 mA Ex ib outputs with line fault monitoring and LED error and status indication for each channel plus SIL 2 plant-Stop input Module hot swap in Zone 1 and Class I, Div. 2 Functional Description - 9475/32-04-72 series digital output modules for Zone 1 and Class I, Div. 2 have four channels for actuating hydraulic and solenoid valves or indicator lamps. An additional I.S. control input is suitable for safe output shutdown up to SIL 2. All outputs are short-circuit proof, galvanically isolated from the system and individually monitored to check for wire breakage/short-circuiting. EXPLOSION PROTECTION Application range (zones) - 1, 2, 21, 22 Ex interface zone - 1, 2, 21, 22 IECEX gas certificate - IECEx DEK 12.0070X IECEx gas explosion protection - Ex ia [ib Gb] IIC T4 Gb IECEx dust certificate - IECEx DEK 12.0070X IECEx dust explosion protection - [Ex ib Db] IIIC ATEX gas certificate - DEKRA 12 ATEX0232X ATEX gas explosion protection - II 2 (2) G Ex ia [ib Gb] IIC T4 Gb ATEX dust certificate - DEKRA 12 ATEX0232X ATEX dust explosion protection - II (2) D [Ex ib Db] IIIC
