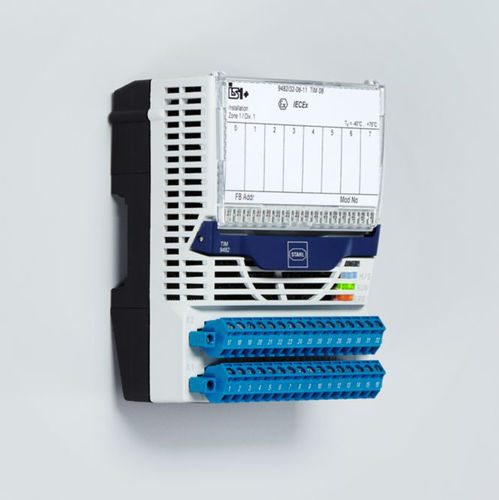

Temperature input module 9482/32-08-11

remotefor thermocouplesfor sensors

Product Description: IS1+ Remote I/O Temperature input module For Zone 1 Ex i Application range (zones): 1, 2 Ex interface zone: 0, 1, 2, 20, 21, 22 Product Description - IS1+ Remote I/O Temperature input module For Zone 1 Ex i Highlights - 8 channels for resistance temperature detectors, potentiometers, thermocouples, mV sensors and joysticks Intrinsically Safe inputs with line fault monitoring and LED error indication per channel Module in Zone 1 and Class I, Div. 1 can be replaced during operation (hot swap) Functional Description - The series 9482 temperature input module for Zone 1 and Class I, Div. 1 has eight channels for the I.S. operation of resistance temperature detectors with two-, three- or four-wire connection and thermocouples. Sensors that comply with DIN, IEC and GOST are supported as well as resistance transmitters up to 10 kΩ and also joysticks for rapid four-channel operation. Earthed thermocouples can be connected. Cold junction compensation can be performed internally or externally. EXPLOSION PROTECTION Application range (zones) - 1, 2 Application range (Zone) note - A suitable enclosure in accordance with the area of application must be used. Refer to the operating instructions. Ex interface zone - 0, 1, 2, 20, 21, 22 IECEX gas certificate - IECEx DEK 13.0046X IECEx gas explosion protection - Ex ia [ia Ga] IIC T4 Gb IECEx dust certificate - IECEx DEK 13.0046X IECEx dust explosion protection - [Ex ia Da] IIIC ATEX gas certificate - DEKRA 13 ATEX 0140 X ATEX gas explosion protection - II 2 (1) G Ex ia [ia Ga] IIC T4 Gb
