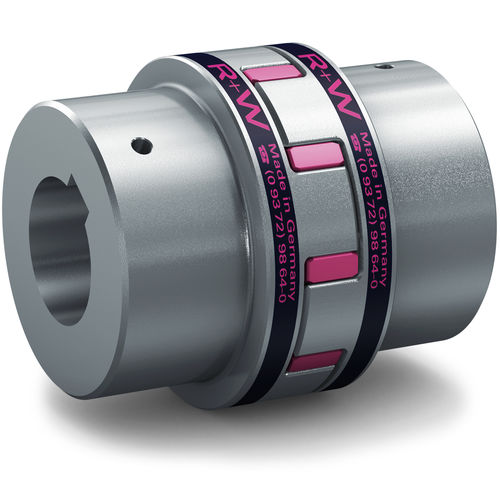

Elastomer coupling EK1 series
Add to favorites
Compare this product
Characteristics
- Type
- elastomer
- Torque
Min.: 1,950 Nm
(1,438.246191 ft.lb)Max.: 25,000 Nm
(18,439.053732 ft.lb)- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 3,500 rpm
(21,991.1486 rad.min-1)
Description
Elastomer coupling with keyway mounting
Properties
low cost
good concentricity
low backlash due to key connection
Temperature Range
dependent on the elastomer insert
Design
Two concentrically machined hubs with curved jaws, keyways and set screws
5x elastomer segments press fit for zero backlash
Material
Hubs: GGG40
Elastomer insert: wear resistant thermally stable TPU
Catalogs
No catalogs are available for this product.
See all of R+W Italia S.r.l‘s catalogsOther R+W Italia S.r.l products
Elastomer couplings
