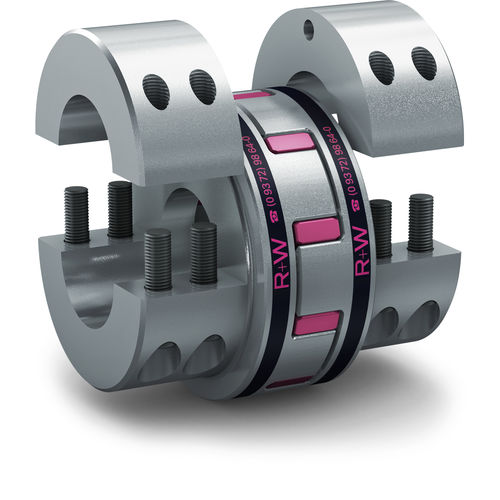

Elastomer coupling EKH series
Add to favorites
Compare this product
Characteristics
- Type
- elastomer
- Torque
Max.: 25,000 Nm
(18,439.053732 ft.lb)Min.: 1,950 Nm
(1,438.246191 ft.lb)- Rotational speed
Max.: 3,500 rpm
(21,991.1486 rad.min-1)Min.: 2,000 rpm
(12,566.3706 rad.min-1)
Description
Elastomer coupling with split clamping hub
Eigenschaften
radial monutable
easy installation and removal
good concentricity
Temperature Range
dependent on the elastomer insert
Design
Two concentrically machined, fully split hubs with curved jaws and clamping screws
Clamping hub halves radially removable in one direction
5x elastomer segments press fit for zero backlash
Material
Hubs: GGG40
Elastomer insert: wear resistant thermally stable TPU
