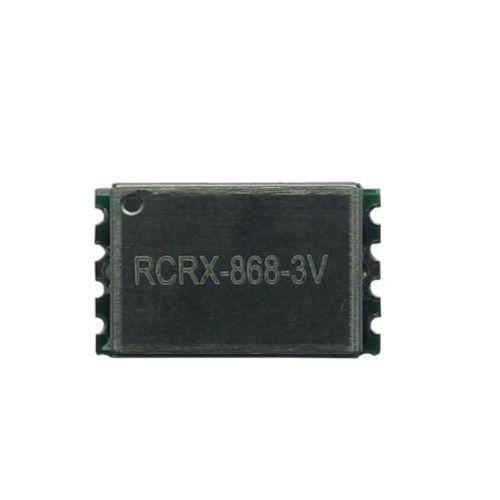

SMD receiver module RCRX-868-L

radioAMOOK

The RCRX-868-L is an OOK Superhet Data Receiver Module featuring a PLL synthesizer and crystal oscillator. It supports ASK/OOK modulation and comes with a metallic shield for enhanced protection. Designed for SMD mounting, this 3V version operates at a frequency of 868.35MHz. Technical Characteristics: - Supply Voltage: 3.0V (min), 3.6V (max) - Current Consumption (RX Mode): 10mA (typ) - Current Consumption Shut Down Mode: 100nA (max) - Frequency: 868.35MHz (typ) - RF Sensitivity: -108dBm (min), -112dBm (max) - Rise Time: <100msec (max) - Max Data Rate: 10Kbit/s (typ) - RF Bandwidth: 360KHz (typ) - Operating Temperature Range: -20°C to 80°C Pin Configuration: 1. ANT - External Antenna 2. GND - Ground 3. GND - Ground 4. PD - Power Down 5. OUT - Data Out 6. GND - Ground 7. GND - Ground 8. VCC - Power Supply
