ISM band radio transmitter RCTX-868-L

OOKASKwireless

Product Details

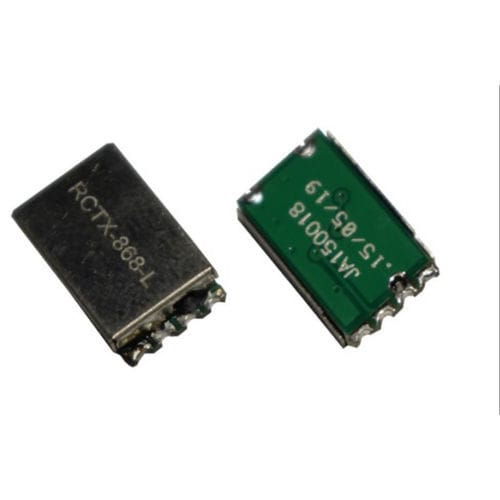

RCTX-868-L is a transmitter module with crystal oscillator, allowing to realize a complete Remote Keyless system by adding a coding circuit. ASK/OOK modulation. SMD Mounting. 3Volt Version.

Technical Characteristics

• Supply Voltage: 2.20 to 3.60 Volt
• Current Consumption (TX Mode): 21 mA
• Current Consumption (Standby Mode): 1 µA
• RF Power Output: 11 dBm
• Frequency: 868.30 MHz
• Frequency Tolerance: ±20 KHz
• Max Data Rate: 50 kbit/s
• Power Up Time: 1 msec
• Operating Temperature range: -20 to 80 °C

Pinout

• Pin 1: ANT - External Antenna
• Pin 2: GND - Ground
• Pin 3: IN - Data Input
• Pin 4: VCC - Power Supply

Key Features

• ASK/OOK transmitter module with Crystal oscillator
• Very small size: 20.32 x 11.43mm
• Metal shield
• Designed for SMD mounting
• 3 Volt version
