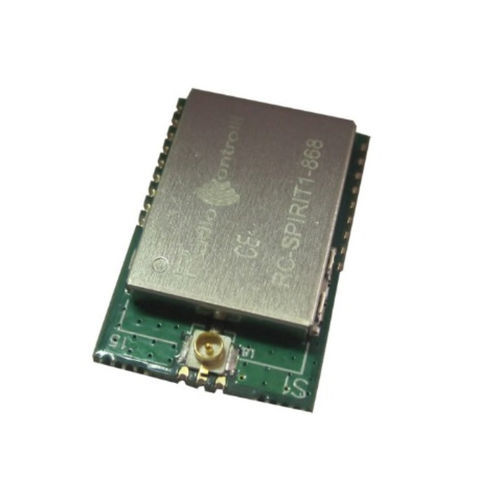

ISM band transceiver RC-SPIRIT1-868

multi-channelprogrammablelow-power

The RC-SPIRIT1-868 module is based on STMicroelectronics SPIRIT1 transceiver. This device is a high-performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band. The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins. Programmable from external microcontroller via SPI interface. For more information and details, please refer to the Spirit1 datasheet (www.st.com). - Technical Characteristics - Supply Voltage: 1.8V - 3.6V - Current Consumption (RX mode): 10 mA - Current Consumption (TX Mode +7dBm): 9 mA - Current Consumption (TX Mode +11.6dBm): 22 mA - Current Consumption Stand by Mode: 600 nA - Current Consumption Shut Down Mode: 2.5 nA - Frequency Band: 868 MHz - RF Power Output 50ohm: up to +16 dBm - RF Sensitivity: -118 dBm - Operating Range Temperature: -30°C to +75°C - Pin Configuration - SDO: SPI slave data output - SDI: SPI slave data input - SCLK: SPI slave clock input - CSn: SPI chip select - GPIO-0 to GPIO-3: General purpose I/O - GND: Ground - SDN: Shutdown input pin - VCC: Power Supply - ANT: Connect to external antenna - Model: RC-SPIRIT1-868 - Based on STMicroelectronics SPIRIT1 transceiver - Sub 1GHz multichannel radio transceiver - Ultra low power consumption - 4 programmable I/O pins - SPI interface for programming - Frequency: 868 MHz - Dimensions: Not specified
