Radio receiver module RXK-2CHASKOOKmulti-channel
Add to favorites
Compare this product
Characteristics
- Type
- radio, ASK, OOK
- Other characteristics
- multi-channel, 433 MHz
Description

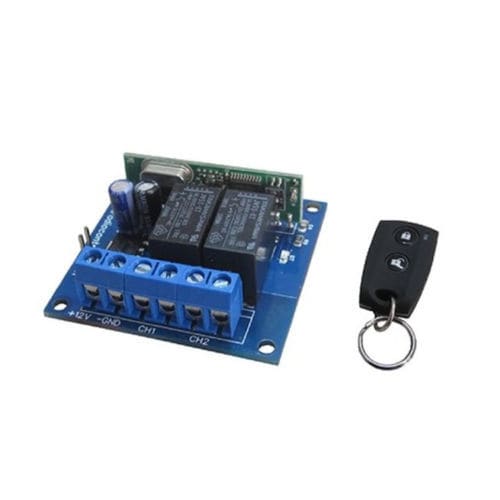

Kit composed:
- RC-RHCS-2CHB: 2-channel receiver unit operating at a frequency of 433.92MHz with ASK / OOK modulation. It is equipped with a superheterodyne radio module.
- RCTV-02: 2 Channels Remote Control
Power Supply
The board operates at 12 volts.
The "Jumper 1" can be used to switch the power supply on and off.
As soon as the card is powered up, the green LED "LED Power" lights up.
Operating mode
The 2 on-board relays can operate in monostable or bistable mode, depending on the needs.
Default configuration:
- Remote controls with encoder EV1527
- Monostable mode operation
- Receiver frequency: 433.92MHz
- Modulation: ASK/OOK
- Number of channels: 2
- Relay output: Yes
- Remote control included: 2 channels
- Power supply: 12V
- LED indicator: Yes (Power)
- Operating modes: Monostable / Bistable
- Default encoder: EV1527
