Radio control TBLO-915-4

with buttons4-buttonIP66

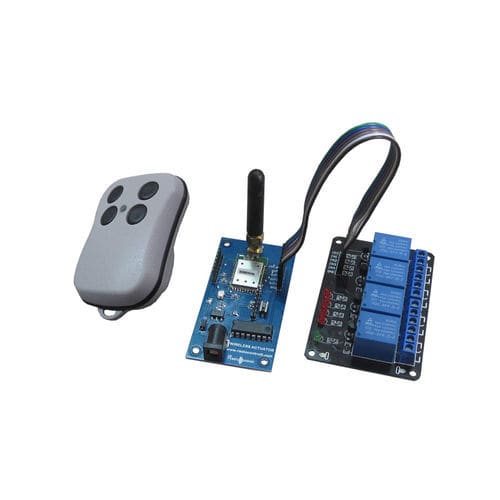

Long range bidirectional system, composed by a bidirectional remote control (TX unit) and a RX unit with the possibility of switching 4 relays. This bidirectional control system has been designed for the various needs of installers and electricians, it can be used to activate all types of lighting, as well as other applications such as water games, electric gates and automatic doors. The remote control (4 keys) has both the ability to transmit and receive (bidirectional), a feature that makes it unique compared to other radio controls, it allows the user to check the status of the relay even remotely (green indicator, relay switched, indicator red relay not switched) and even to switch the single relay. Each time a relay activation command is sent, there is a visual confirmation as to whether the activation operation was successful or not (return receipt). Available at the following frequencies: 868MHz, 433MHz, 915MHz. Technical Characteristics: - Confirmation sent command (return receipt). - Possibility to interrogate the RX unit and check the status of the 4 channels. - GFSK modulation 19.2Kbps - Frequency 915MHz - Distance: About 1000 meters in open field. Parameters: - Power Supply Remote Control: 1.80V (min), 3.0V (typ) - Power Supply RX Unit: 5.0V (typ) - Frequency: 915 MHz - RF Power Output 50ohm: +10 dBm - Data Rate: 2.5 Kbps - Deviation: 5.0 KHz Kit Composition: - RCAT-915 RX Unit (4 channels) - Commercial Relay Card (4 relay) - Bidirectional Remote Control (4 keys) - 915MHz Antenna - 5Volt Power Supply - Connection cable Type of Modulation: 2-GFSK Remote control Degree of protection: IP66 Type of battery (Remote Control): 3Volt lithium (CR2450)
