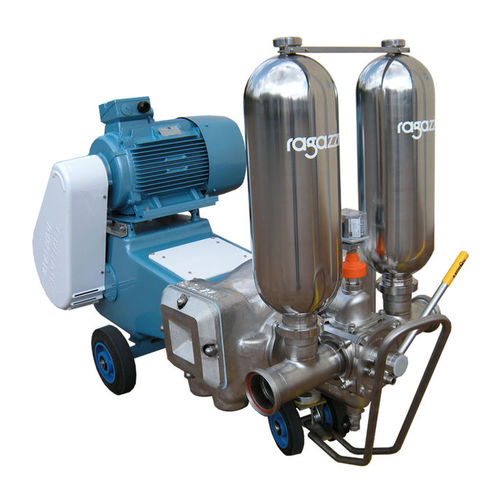

2-piston pump 6NCM
for chemicalselectricstationary

2-piston pump - 6NCM - RAGAZZINI - for chemicals / electric / stationary
2-piston pump - 6NCM - RAGAZZINI - for chemicals / electric / stationary
2-piston pump - 6NCM - RAGAZZINI - for chemicals / electric / stationary - image - 2
2-piston pump - 6NCM - RAGAZZINI - for chemicals / electric / stationary - image - 3
2-piston pump - 6NCM - RAGAZZINI - for chemicals / electric / stationary - image - 4
2-piston pump - 6NCM - RAGAZZINI - for chemicals / electric / stationary - image - 5
Add to favorites
Compare this product

Characteristics

Technology
2-piston
Fluid
for chemicals
Operation
electric
Mobility
stationary
Domain
industrial
Flow

Max.: 100,000 l/h
(26,417.20524 us gal/h)

Min.: 70,000 l/h
(18,492.04367 us gal/h)

Pressure

Max.: 3 bar
(43.511 psi)

Min.: 2.5 bar
(36.259 psi)

Power

Max.: 14 kW
(19.03 hp)

Min.: 9 kW
(12.24 hp)

Length

2,060 mm
(81 in)

Width

1,290 mm
(50.79 in)

Height

800 mm
(31.5 in)

Weight

780 kg
(1,719.61 lb)

Description

The 6NCM from Ragazzini is a frequency inverter equipped with DIN 100 11851 connections and two pistons. The tool contains capacity of up to 2.5/3 bar, with a motor with 13-9 Kw. In addition, it weights 780 kg, and has an electric drive with one or two available speed levels.
