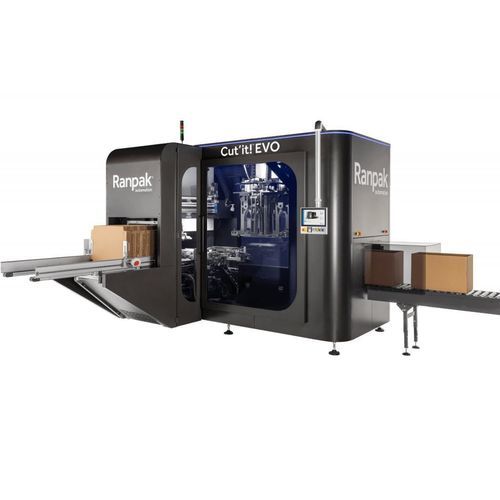

Automatic packaging machine Cut’it!™ EVO

compactfor cardboard boxesall-in-one

Product overview
Cut’it!™ EVO is an automated packaging solution from Ranpak that increases productivity and reduces costs by performing height-reduction and automatic lid application for boxes. The machine finishes up to 15 size-optimized boxes per minute, reduces average shipping volume by around 25%, and is designed to handle peak demand while improving operations and sustainability.

Your benefits

• Cost efficient — Higher throughput with less labour; improves productivity during regular operation and handles peak demand with fewer temporary staff.
• Sustainable — Reduces shipped air by enabling smaller boxes that require less void fill material, lowering environmental impact.
• Highly protective — Produces a glued lid on a height-reduced box for stronger, tamper-proof packages.
• Innovative and easy to operate — User-friendly 12-inch HMI screen and large transparent sliding doors enable easy monitoring and maintenance.
• Great unboxing experience — Appropriately sized boxes improve customer satisfaction with less void fill material to discard or recycle.

State of the art technology

• Optimized design
  • Big sliding doors for easy maintenance
  • Easy to load lid magazine
  • Large windows
  • Integrated glue storage
• User-friendly interface
  • 12-inch full colour HMI display
  • Swivel arm display for use on either side of the machine
  • Start, stop, and reset button
• Cutting and creasing
  • Combined cutting and creasing maximizes height reduction potential
• Easy integration
  • Small machine footprint
  • Machine available in left or right orientation
• Online connectivity
  • KPI data reporting
  • Remote assistance/support
  • Video camera system

Caractéristiques / spécifications techniques

• Machine throughput: Up to 15 boxes/minute
• Box length: From 230 to 650 mm
• Box width: From 150 to 450 mm
• Box height: Up to 300/470 mm (larger box sizes on request)
• Box types: FEFCO 0200/452/453 (other types on request)
• Machine length: 3450 mm
• Machine width: 4228 mm
• Machine height: 3031 mm
• Machine weight: 2120 kg
