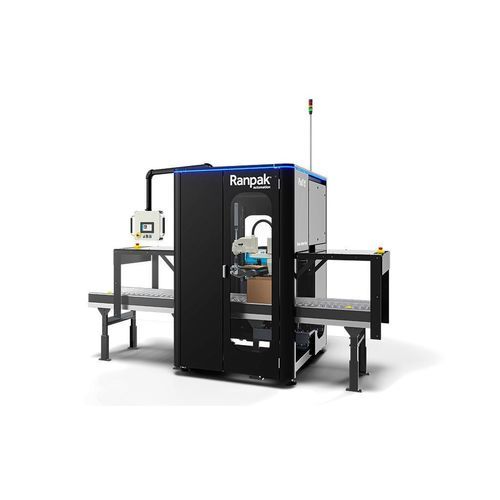

Paper protective packaging insertion machine Pad’it!™

Overview
Pad’it! is an inline automated machine that inserts wave‑shaped paper cushioning pads supplied by WrapPak® Protector into cartons to protect products and standardize presentation. Designed for integration on existing conveyor lines, Pad’it! handles up to 15 boxes per minute and supports left/right and parallel/perpendicular orientations for flexible installation.

How it works
As each carton arrives on the conveyor, a 4‑axis robot with a gripper picks a preformed paper pad and places it at the bottom, top, or both positions inside the box. The system offers no‑code robot programming and a single point of operation via the HMI to simplify setup and daily use.

Your benefits

• Labor reduction: automates manual pad placement and removes the need for dedicated operators at the pad station; up to 15 boxes/min processing.
• Line integration: compact footprint and configurable orientations allow easy addition to existing automated packaging lines and compatibility with Form’it! and Cut’it! EVO solutions.
• Improved protection: bottom and top pads reduce product movement and protect against flat‑bottom drops, decreasing returns and surface damage.
• Sustainability: uses 100% curbside‑recyclable paper pads that are non‑toxic, biodegradable and made from renewable resources, lowering single‑use plastic in the supply chain.
• Consistent presentation: wave‑shaped paper pads deliver a uniform internal appearance for improved unpacking presentation.

State of the art technology & Features

• Optimized design: large access doors and observation windows for maintenance and visibility; fully integrated paper converter.
• User interface: 7‑inch full‑colour touchscreen HMI with swivel arm for operation from either side; intuitive no‑code robot programming.
• Flexible integration: small footprint; available in left/right orientations and parallel/perpendicular configurations to match conveyor layouts.

Specifications

• Machine throughput: up to 15 boxes per minute
• Pad handling: 4‑axis robot with gripper for pick & place
• HMI: 7‑inch full‑colour touchscreen
• Conveyor: integration point at existing customer conveyor
• Paper converter: WrapPak® Protector

Technical specifications

• Throughput: up to 15 boxes/min
• Robot: 4‑axis robot with gripper
• Programming: no‑code robot programming via HMI
• Pad material: wave‑shaped paper pads from WrapPak® Protector (100% curbside‑recyclable)
• Footprint & orientation: small footprint; machine available in left/right and parallel/perpendicular configurations
