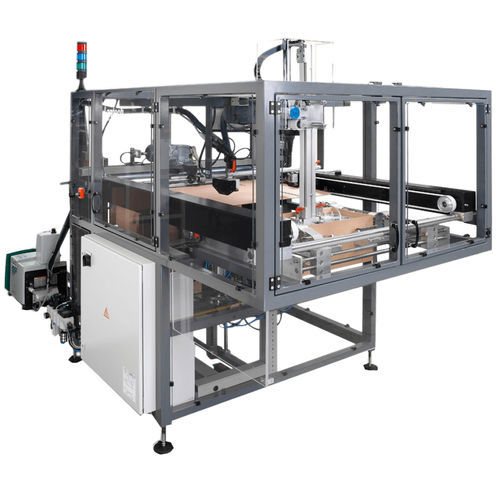

Walk-in tray former Form’it!™ Tray

automatedmotorizedin-line

Overview
The Form’it!™ Tray, developed by Ranpak, is a tray-forming machine designed for inline automation of corrugated trays. Available in models 200, 300 and 350, it delivers consistent square trays, easy integration into packaging lines and safe, ergonomic handling.

Key Features

• High productivity: automated output of 15+ trays per minute (typical)
• Ergonomic motorized walk-in magazine for safe loading and low operator fatigue
• Retractable forming cavity and pressure cylinders to prevent glue smearing
• Accurate blank control with 4 snap-lock clips for repeatable forming
• Compact footprint for straightforward line integration
• User interface: intuitive full-color touch screen panel

Applications / Industries

• E‑commerce and fulfilment centres
• Large logistics operations and 3PL providers
• Consumer goods, beauty & healthcare, office supplies, graphic arts, electrical/electronics, tools & hardware

Performance & Added Value

• Lower total cost of ownership through faster packing rates and reduced labour
• Reduced material use and voids to improve environmental footprint
• Improved product protection and unpacking experience for end customers

Technical Data / Specifications (summary)

• Available models: Form’it!™ Tray 200, 300, 350
• Output: 15+ trays per minute (automated operation, typical)
• Magazine: ergonomic motorized walk-in magazine
• Blank control: 4 snap-lock clips
• Glue handling: retractable forming cavity and pressure cylinders
• Discharge: trays discharged directly onto customer conveyor

Technical specifications

• Form’it!™ Tray 200
  • Machine dimensions (mm): 2307 x 2615 x 2160
  • Carton (outside) min (mm): 280 x 200 x 40
  • Carton (outside) max (mm): 600 x 400 x 200
• Form’it!™ Tray 300
  • Machine dimensions (mm): 3330 x 1980 x 1800
  • Carton (outside) min (mm): 280 x 200 x 80
  • Carton (outside) max (mm): 600 x 400 x 300
• Form’it!™ Tray 350
  • Machine dimensions (mm): 3530 x 2080 x 1800
  • Carton (outside) min (mm): 280 x 200 x 80
  • Carton (outside) max (mm): 600 x 400 x 350
• Operation: sides folded and glued on 4 sides while blank is pressed through the forming unit by the stamp; ready trays discharged onto customer conveyor.
