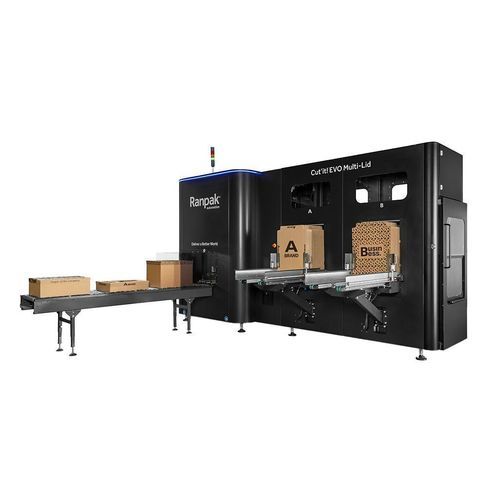

Automatic packaging machine Cut’it!™ EVO Multi-Lid

for cardboard boxesend-of-lineflexible

Overview
The Cut’it!™ EVO Multi-Lid is a box height-reduction machine with an integrated multi-lid applicator that enables application of up to four distinct branded lids on a single packaging line. Integrated height-reduction technology adapts the box height to the highest fill point to reduce voids and improve parcel presentation.

Key product concept
The Cut’it!™ EVO Multi-Lid combines height reduction and lid application to allow late-stage brand customization on a universal box, enabling one line to serve multiple customers and channels.

Your benefits

• Box-branding flexibility — apply different lids/branding from the same packaging line for B2B and B2C differentiation.
• Cost efficiency — ship brand-specific boxes without investing in dedicated machinery per customer or product line.
• End-of-line customization — enable late-stage personalization using one universal box and brand-specific lids.
• 3PL competitiveness — operate a single line to pack multiple brands for different customers.
• Retrofitable and scalable — Multi-Lid module can be fitted to existing Cut’it!™ EVO units and scaled from 2 to 4 lid magazines.
• Space optimization — serve multiple customers from a single warehouse or packaging line.

State of the art technology — selected features

• Optimized design: large sliding doors for easy maintenance; easy-to-load lid magazines; large observation windows; integrated glue tank.
• User interface: 12-inch full-color HMI with swivel arm for left/right operation; start, stop and reset controls.
• Cutting and creasing: combined cutting and creasing maximizes height-reduction potential.
• Easy integration: compact footprint; available in left or right orientation; modular lid magazine placement and retrofit option.
• Online connectivity: KPI reporting, remote assistance/support and integrated video camera system.

Additional product notes
The Multi-Lid module enables selective application of up to four unique lids on a single line, increasing packaging differentiation and improving end-customer unboxing experience.

Specifications
TECHNICAL DATA

• Machine throughput: Up to 15 boxes/minute
• Box length: 230–650 mm
• Box width: 150–450 mm
• Box height: Up to 300 / 470 mm* (depending on box size)
• Box weight: 15–35 kg* (depending on box size)
• Box types: FEFCO 0200 / 452 / 453 (other types on request)
• Minimal inside height after height reduction: 25 / 55 mm* (depending on box size)
• Hot melt applicator: Robatech (auto refill)
• Modular lid magazine placement — retrofit option to scale from 2 to 4 magazines
• 12-inch HMI, swivel arm, remote connectivity and KPI reporting
