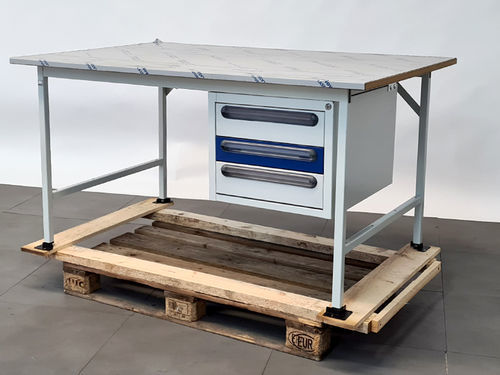

Steel workbench 06-500S10-15.12-UC-Schfor workshops3-drawerwith cabinet
Add to favorites
Compare this product
Characteristics
- Worktop material
- steel
- Applications
- for workshops
- Other characteristics
- 3-drawer, with cabinet
- Length
1,000 mm
(39 in)- Width
1,500 mm
(59 in)- Height
850 mm
(33 in)- Load
300 kg
(661.4 lb)
Description
Description
Equipment (Underframe / Drawers / Safety features)
Condition notes (B-grade)
Technical specifications
- Worktop with steel-sheet covering, thickness 25 mm.
- Top covered with a 1.5 mm galvanized steel sheet; L-fold at the front edge. Steel sheet DX51D+Z 275MA, material no. 1.0226 according to DIN EN 10327/10346. Splash-water resistant, dirt-resistant, temperature-resistant and pressure-resistant. Largely resistant to acids, oils, fats, solvents and chemicals. Cover classified flame-retardant (B1) according to DIN 4102. Core made of MDF (medium-density fibreboard).
- System underframe, B1340 x D860 x H780-830 mm.
- 4-leg frame with two pairs of profile steel tube feet (30x30x2 mm) including depth bracings (top and bottom). Frame feet with end elements including height adjustment. Crossbars of profile steel tube (50x25x2 mm) under the worktop (front and rear). Rear stiffening traverses (left and right) connect the frame feet pair with the rear crossbar. Frame feet prepared for fitting/retrofit of a castor set.
- Note: This base table can be extended with an add-on table of the same depth.
- Finish: RAL 7035 light grey / RAL 5010 gentian blue.
Equipment (Underframe / Drawers / Safety features)
- 1x underbench container on the right, with the following layout:
- 3 x drawers: 1x H90 mm, 2x H120 mm.
- Drawer inner dimensions B390 x D560 mm; load capacity 35 kg; extension 90%. Useful height equals front height minus 15 mm. Drawer pan fully closed including drawer divider sets.
- Continuous, partially integrated handle strip (including labelling strip).
- Central lock (pin-cylinder lock with 2 keys).
- Open top - intended for use as an underbench container (partially integrated).
Condition notes (B-grade)
- Soft-closing function defective.
- Top slightly scratched.
- Small paint damages and scratches on the frame.
Technical specifications
- Width: 1500 mm
- Depth: 1000 mm
- System underframe (dimensions): B1340 x D860 x H780-830 mm
- Height adjustable: from 800 mm to 850 mm
- Top type: steel-sheet covered worktop (galvanized steel sheet, L-shaped front fold)
- Top thickness: 25 mm (core: MDF)
- Static load (stationary): 300 kg
- Number of drawers: 3
- Drawer inner dimensions: B390 x D560 mm; drawer load capacity: 35 kg; extension: 90%
- Color: RAL 7035 (light grey) / RAL 5010 (gentian blue)
