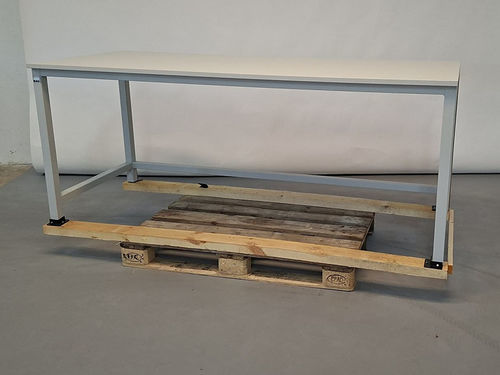

Steel workbench 03-900-1-M22-20H.12-Sch

for workshopsfor heavy loadsfully-welded

Description

• Worktop with melamine resin coating, thickness 22 mm.
• Both faces coated with light-grey melamine direct coating. Melamine coating according to DIN68765. Splash-water resistant and stain-resistant; surface properties per EN14322/EN14323: abrasion resistance Class 3A; scratch resistance N>1.5; stain resistance ≥ level 3 (e.g. acetone, alcohol, organic solvents, petrol); crack resistance ≥ level 3; cigarette burn behavior Class 3; steam behavior Class 4. Certificate confirming safe migration behavior, suitable for incidental food contact. Surface classified normally flammable (B2) according to DIN4102. Core panel: chipboard according to EN309/EN312 (emission class E1). All-round light-grey antistatic ABS edge.
• System underframe, W1995 x D750 x H800-1000 mm.
• 4-leg welded frame with two pairs of profile steel tube legs (45x45x2 mm) including depth bracing (top and bottom). Frame feet feature integrated height adjustment using profile steel tube (40x40x2 mm) with hole pitch 20 mm and end cap including leveling and anti-slip pad for secure standing. Cross braces from C-profile (40x40x2 mm) under the top (front, middle, rear) and below (rear). Frame prepared for retrofitting a set of castors.
• Color: RAL7035 light grey.
• Minor paint damage, scratches and soiling on the frame.

Technical data (from table)
Width: 2000 mm
Static surface load: 500 kg
Depth: 800 mm
Height from: 825 mm
Height to: 1025 mm
Top type: melamine-coated worktop
Top thickness: 22 mm

Condition note
Product as B-grade: minor paint damage, scratches and soiling on the frame are present.

Characteristics / Technical specifications

• Worktop construction: melamine resin coating, 22 mm, light grey, antistatic ABS edge
• Standards / test values: DIN68765; EN14322/EN14323 (abrasion, scratch resistance, stain resistance, crack resistance, cigarette burn, steam behavior)
• Core panel: chipboard according to EN309/EN312 (emission class E1)
• Underframe: 4-leg welded frame from profile steel tube (45x45x2 mm) with depth bracing
• Height adjustment: profile steel tube 40x40x2 mm with 20 mm hole pitch
• System underframe dimensions: W1995 x D750 x H800-1000 mm
• Product dimensions (table): Width 2000 mm x Depth 800 mm; adjustable working height 825 mm to 1025 mm
• Static surface load: 500 kg (note: load reduces if castors are fitted)
• Color: RAL7035 (light grey)
