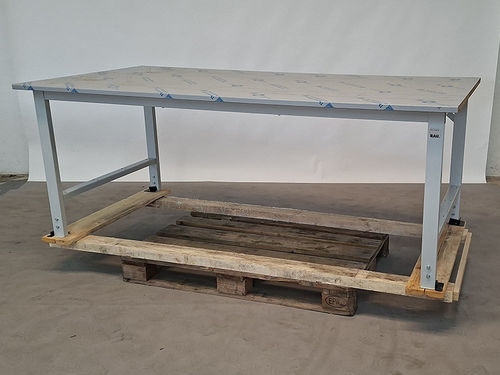

Stainless steel workbench Tom

for workshopsmodularmobile

Description

• Worktop with stainless-steel sheet covering, total thickness 25 mm. Upper surface with a 1.5 mm stainless-steel covering (NIROSTA®), front folded in L-shape. Stainless steel X5CrNi18-10, material no. 1.4301 according to DIN EN 17441/10088-2. Splash-proof, dirt-resistant, temperature- and pressure-resistant. Largely resistant to acids, oils, fats, solvents and chemicals. Covering flame-retardant (B1) according to DIN 4102. Plate core: MDF (medium-density fibreboard).
• System base, W 2000 x D 1000 x H 760–1080 mm.
• 4-leg frame with two pairs of legs made of profile steel tube (60x30x2 mm) including depth bracing (top and bottom). Bottom of the frame legs fitted with end piece including height adjustment. Crossbars of profile steel tube (50x25x2 mm) under the worktop (front and rear). Rear stiffening traverses (left and right) connecting the leg pair and rear crossbar. Frame prepared for mounting/retrofit of a castor set.
• Note: This base table can be complemented with an add-on table of the same depth.
• Colour: RAL 7035 light grey.
• Condition: top slightly soiled and damaged.
• Paint damage and scratches on the frame.

Technical data (table)
Width: 2000 mm
Static surface load: 500 kg
Depth: 1000 mm
Height from: 760 mm
Height to: 1080 mm
Top type: stainless-steel sheet covering worktop
Top thickness: 25 mm


Additional features

• Top core: MDF (medium-density fibreboard).
• Stainless-steel covering X5CrNi18-10 (material no. 1.4301).
• Covering flame-retardant (B1) according to DIN 4102.
• Frame prepared for retrofitting a castor set; height-adjustable frame feet.
• System base enables compatibility with system accessories and add-on parts.

Specifications

• Product name/series: Arbeitstisch Tom
• Width: 2000 mm
• Depth: 1000 mm
• Height adjustment: 760–1080 mm
• Top thickness: 25 mm
• Top surface: stainless-steel sheet covering (1.5 mm NIROSTA®)
• Top core: MDF
• Stainless-steel material: X5CrNi18-10 (material no. 1.4301)
• Static surface load: 500 kg
• Frame: 4-leg frame, profile steel tube 60x30x2 mm, crossbars 50x25x2 mm, stiffening traverses
• Colour: RAL 7035 (light grey)
• Condition: top slightly soiled/damaged; paint damage and scratches on the frame
• Compatibility: can be complemented with an add-on table of the same depth; frame prepared for castor set (mobilisable)
