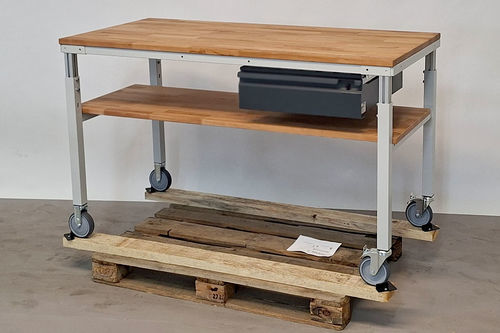

Beech workbench E-B-AT-1500-700B.12+08-200-06-ABG-F-Sch

for workshopsindustrialwith drawer

Description

• Beech solid worktop, thickness 25 mm. Beech lamellae finger-joint glued. Front edge with radius, other edges chamfered. Surface protected with eco-friendly lacquer-oil. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
• System underframe, standard size W1500 x D700; height-adjustable (specification on page: H630–980 mm).
• 4-leg frame with two pairs of frame feet made from profile steel tube (45x45x3 mm) including central depth bracing. Frame feet at bottom with end caps including leveling and anti-slip studs. Frame feet at top with integrated height adjustment via aluminium profile (40x40 mm) with profile groove for stepless working height adjustment. Cross braces from profile steel tube (35x35x2 mm) under the worktop and depth braces from angle iron (40x35x2 mm) with mounting adapters (left, right).
• Caster set: 2 fixed and 2 swivel castors with brake; expander fastening for profile steel tubes 40x40x2 mm and 45x45x2 mm. Wheel diameter 125 mm, overall height 150 mm, tread thermoplastic rubber (grey, non-marking, 85° Shore), wheel body polypropylene.
• Note: Base unit can be complemented with an extension table (same or smaller depth) and/or corner table.
• Color options: RAL7035 (light grey) / RAL7016 (anthracite grey).
• Demonstration sample - no visible defects.

Equipment

• 1 underframe drawer on the right, dimensions: W520 x D650 x H175 mm; internal drawer dimension L: W490 x D560 mm, load capacity 50 kg. Useful height corresponds to front height minus 15 mm. Ball-bearing drawer slides (90% extension).
• Continuous, fully integrated handle rail (handle edging).
• Central locking (pin cylinder lock with 2 keys).
• Beech solid shelf underneath (depth 545 mm, thickness 25 mm).

Technical data (table)
Storage shelf: beech solid shelf
Drawer type: partial extension 90%
Width: 1500 mm
Load capacity mobile: 450 kg
Number of drawers: 1
Depth: 700 mm
Height (description): H630–980 mm
Height from (tech. table): 650 mm
Height to (tech. table): 1000 mm
Top type: beech solid worktop
Top thickness: 25 mm
Mobility: mobile


Characteristics / Technical specifications (summary)

• Model / Series: Workbench Series E
• Article number (example configuration): E-B-AT-1500-700B.12+08-200-06-ABG-F-Sch
• Worktop material: solid beech, finger-joint glued
• Top thickness: 25 mm
• Total width: 1500 mm
• Total depth: 700 mm
• Height adjustment (stated): 630–980 mm (description) / 650–1000 mm (technical table)
• Frame: 4-leg, profile steel tube 45x45x3 mm
• Cross- and depth braces: profile steel tube 35x35x2 mm / angle iron 40x35x2 mm
• Caster set: 2 rigid + 2 swivel castors, Ø 125 mm, thermoplastic rubber
• Mobile load capacity: 450 kg
• Drawers: 1 (drawer size L: internal W490 x D560 mm, load capacity 50 kg, partial extension 90%)
• Worktop surface treatment: lacquer-oil (environmentally friendly)
• Frame / attachments color options: RAL7035 / RAL7016
• Accessories / additions available: extension table, corner table, system attachments, drawer organizer sets, anti-slip mats
