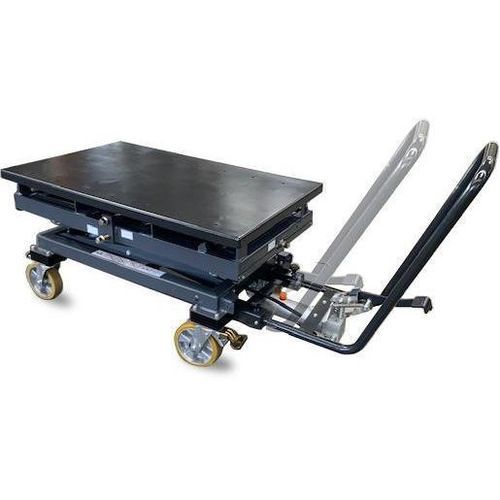

Foot-operated lift table KT100XT

hydraulicmobilefor assembly

Product Overview
The Universal Lifting Table

• Flexibility of use: easy handling and extensive application possibilities, including in electric vehicles
• Total safety: optimum assembly and fastening of the various components
• Great versatility: wide range of accessories for all fields of application

Universal lifting table with a load capacity up to 1 t. Suitable for easy and safe removal and installation of engines, gearboxes, HV batteries, and chassis components. Developed on the basis of 20 years of experience as a manufacturer of lifting tables in cooperation with leading car manufacturers.

• Tradition, experience and technological progress – A combination that results in high-performance, reliable and practical products.
• Braking tests – In combination with a lift, these lifting tables are used in particular for those vehicle components that, because of their design, can only be installed/removed from underneath the vehicle.
• The lifting tables of the KT series, combined with the separately available accessories, make it easy to mount engines, gearboxes, high-voltage batteries and even entire drive units.
• A wide range of accessories (available separately) makes the lifting table an indispensable and universally usable workshop tool.

• For engines, gearboxes & HV batteries
• Also suitable for electric vehicles
• Using standard maintenance permits safe working when servicing the lifting table
• Tiltable mounting plate with 2 x 7 holes for secure mounting of various supports – The mounting holes arranged on both left- and right-hand side of the platform offer plenty of possibilities to mount mounting tools
• The integrated lowering brake valve allows an exact dosing of the lowering speed
• Large castors and parking brakes ensure excellent mobility in the workshop – Easy to maneuver even with load thanks to plastic rollers with ball bearings
• The hydraulically controlled lifting load stroke is activated by foot, using a double acting pump that ensures the lifting of any load quick and effortless.
• The compact design provides plenty of space underneath the vehicle.
• The shallow, slim design and the handle that can be moved vertically, make positioning underneath the vehicle very easy.
• Tabletop: it can be inclined 2° perpendicular to the direction of travel, can be moved 20 mm longitudinally and transversely
• Tabletop bores: 2 rows each with 7 bores Ø 12
• Handle: extendable
• Wheels: 4 x 360° (2 straight lockable)

Technical Specifications
Mode of drive: Hydraulic
Operation: Foot control
Quick lift: Not possible
Capacity: 1000kg
Stroke: 1330mm
Max. lifting height: 1965mm
Max. lifting length: 1260mm
Max. support width: 740mm
Overall height: 635mm
Surface coating: Powder coated
Corrosion preventing: Ultra High Solid Primer (UHS)
Length: 1672 – 2072mm
Width: 740mm
Country of origin: CN
