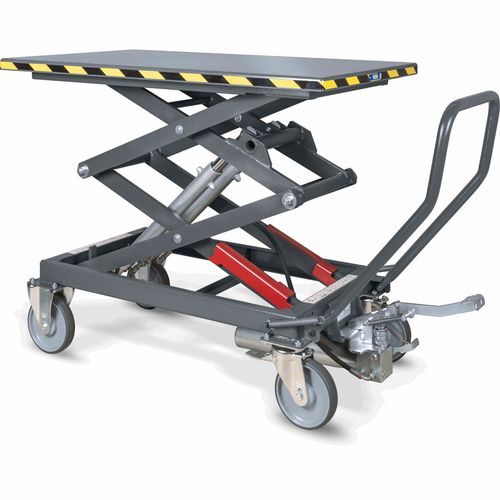

Foot-operated lift table KTE100

hydraulicstationary

Product Overview
The Universal Lifting Table

• Flexibility of use: easy handling and extensive application possibilities, including in electric vehicles
• Total safety: optimum assembly and fastening of the various components
• Great versatility: wide range of accessories for all fields of application

Universal lifting table with a load capacity up to 1 t. Suitable for easy and safe removal and installation of engines, gearboxes, HV batteries, and chassis components. Developed on the basis of 20 years of experience as a manufacturer of lifting tables in cooperation with leading car manufacturers.

• Tradition, experience and technological progress – A combination that results in high-performance, reliable and practical products.
• Braking tests – In combination with a lift, these lifting tables are used in particular for those vehicle components that, because of their design, can only be installed/removed from underneath the vehicle.
• The lifting tables of the KT series, combined with the separately available accessories, make it easy to mount engines, gearboxes, high-voltage batteries and even entire drive units.
• A wide range of accessories (available separately) makes the lifting table an indispensable and universally usable workshop tool.

• For engines, gearboxes & HV batteries
• Also suitable for electric vehicles
• Using standard maintenance permits safe working when servicing the lifting table
• Fixed mounting plate with 2 x 7 holes for secure mounting of various supports; or tilting depending on the model – The mounting holes arranged on both left- and right-hand side of the platform offer plenty of possibilities to mount mounting tools
• The integrated lowering brake valve allows an exact dosing of the lowering speed
• Large castors and parking brakes ensure excellent mobility in the workshop – Easy to maneuver even with load thanks to plastic rollers with ball bearings
• The hydraulically controlled lifting load stroke is activated by foot, using a double acting pump that ensures the lifting of any load quick and effortless.
• The compact design provides plenty of space underneath the vehicle.
• The shallow, slim design and the handle that can be moved vertically, make positioning underneath the vehicle very easy.
• Tabletop: rigid
• Tabletop bores: 2 rows each with 7 bores Ø 12
• Handle: fixed, foldable
• Wheels: 2 x 360° + 2 x fixed

Technical Specifications / Features

• Load capacity: 1.0 t
• Stroke: 1300 mm
• Hydraulically-operated foot pump
• MPN: KTE100
