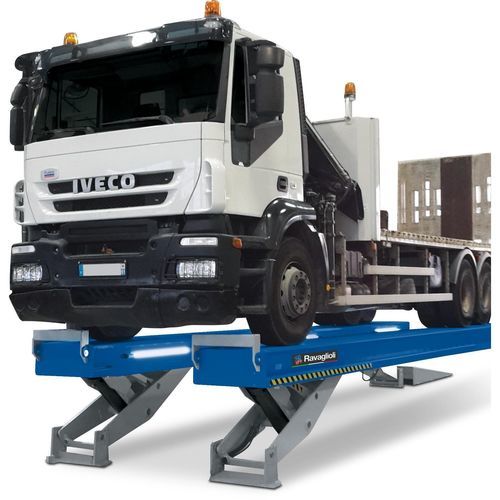

Fixed scissor lift RAV825.9I

electro-hydraulicworkshopcommercial

Product Details
25 t, electrohydraulic, platform length 9000 mm, with safety latch, inground

Description
Commercial vehicle lifts

• No cross rails or torsion bars between lifting platforms. Maximum accessibility in the working area.
• Electronic synchronisation of the platforms, independently of the load distribution.
• Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position.
• All pivot points made with self lubricating bushings for long life.
• Platform surface in ribbed anti-slip steel plate.
• The best solution for a rational workshop:
  • space-saving when lift is raised
  • obstacle free floor space when lift is fully lowered.

Technical Specifications
Features
Scissor lift design: Scissors with runways
Mode of drive: Electrohydraulic
Type of installation: Surface mounted
Capacity: 25000kg
Max. lifting height at floor level: 1750mm
Play detector: Not possible
Surface coating: Powder coated
Corrosion preventing: Cathodic electrodeposition coating (CEC)
Wheel alignment: Not possible
Length of platforms: 9000mm
Width of platforms: 750mm
Wheel free lift: Not possible
Driving power: 4 x 2.6kW
Electrical connection: 400 V | 50 Hz
Length: 9000mm
Width: 2650mm
Country of Origin, customs: IT
