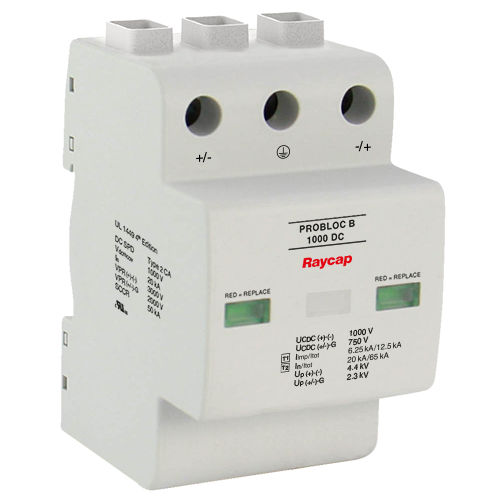

Type 2 surge protector ProBloc B 1000 DC

type 1type 1CAfor electrical networks

• Maximum Continuous Operating DC voltage 1000 V • High Surge Discharge Current (ITotal) 12.5 kA (10/350) • Short circuit current rating up to 50 kA • Leakage Free hybrid topology • High Energy MOV and GDT technology • Compact design • Vibration and shock-resistant • UL Type 1CA certified • Optional remote contact (RC) signaling ProBloc B 1000 DC is a UL Type 1CA certified product designed for use to protect a large number of DC sources. Its main features include a compact design and an innovative patented disconnecting device with a rotating mechanism that can be used to safely extinguish a switching arc. Due to the high self-extinguishing capacity, a prospective shortcircuit current of 50 kA can be separated, for example as caused by battery storage in e-mobility applications. With this solution, numerous systems in the growing electromobility market (e-mobility) can be protected.
