IEC/EN Category: C1/C3
Mode of Protection: Transverse
Voltages: 30 V DC
Frequency Range: 30 MHz
Surge Discharge Ratings: In: 250 A
Series Load Current: 10 A
Enclosure: DIN 43880 2/3 TE, DIN Rail Mount
Terminals: Stranded to 4 mm2
Housing: Modular Design
Compliance: IEC/EN 61643-21; UL 497B 4th Edition

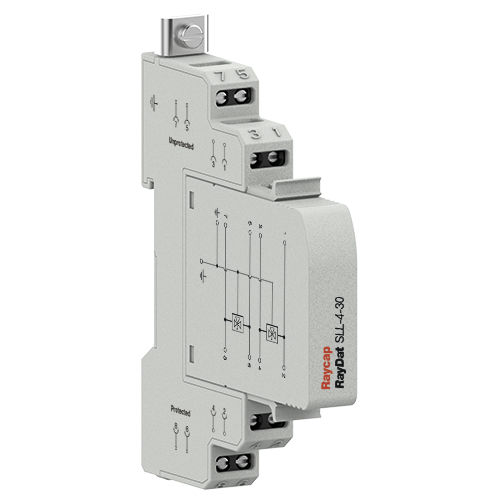

The RayDAT SLL-4 has been developed to protect data transmission circuits or low voltage alarm circuits such as fire or security. The unit provides fine protection using a high speed, bi-directional, silicon stage.
Where necessary, the RayDat SLL-4 may be used with a higher energy coarse protection unit such as the SUR-4-110 Series. The plug-in module design facilities replacement of a failure module without the need to remove system wiring. If the module is unplugged out of the base, the connection lines remain enabled.
