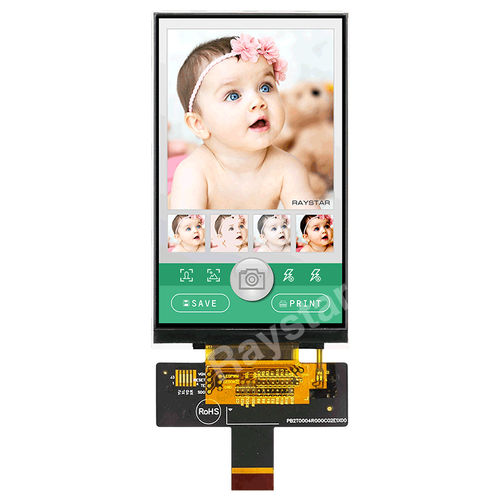

LCD/TFT display module RFO400C-AYW-MNNIPSLED480 x 800
Add to favorites
Compare this product
Characteristics
- Type
- LCD/TFT, IPS, LED
- Format
- 480 x 800
- Screen size
- 3.97"
- Applications
- control
- Other characteristics
- interface, RGB, MIPI
Description
Size (Diagonal) - 3.97 - inch
Dot Matrix / Resolution - 480 × 3(RGB) × 800 - dots
Module Dimension - 57.14 × 96.85 × 2.15 - mm
Viewing Area - 52.84 × 87.4 - mm
Active Area - 51.84 × 86.4 - mm
Dot / Pixel Pitch - 0.108 × 0.108 - mm
LCD Type - TFT, Normally Black, Transmissive -
View Direction - IPS -
Aspect Ratio - Portrait -
Backlight Type - LED, Normally White -
Control Board - No -
TFT Driver IC - ST7701S -
Interface - MIPI DSI -
Touch Panel - Without Touch Screen -
Surface - Anti-Glare -
Brightness - 600 - cd/㎡
Operating Temperature - -20~+70 - °C
Storage Temperature - -30~+80 - °C
TFT Series - Standard TFT LCD Display, IPS TFT LCD
