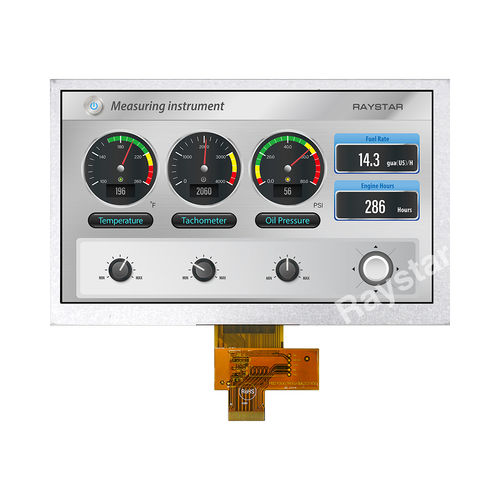

LCD/TFT display module RFH700A8-AYH-MNN

IPSLED1024 x 600

RFH700A8-AYH-MNN is a 7" TFT LCD display module. Its resolution is 1024x600 pixels with aspect ratio 16:9. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. This TFT module adopts driver IC EK79007AD3 + EK73217BCGA supporting 4-Lanes MIPI interface. It also features wide viewing angle and high brightness, providing brightness 1100 cd/m2, contrast ratio (typical value) 800:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. This design is a good fit for industrial application, medical equipment, home appliances, etc. Module Dimension - 169.9(W) × 103.4(H) × 5.6(D) - mm Viewing Area - 157.2 × 89.43 - mm Active Area - 154.2144 × 85.92 - mm Dot / Pixel Pitch - 0.1506 × 0.1432 - mm LCD Type - TFT, Normally Black, Transmissive - Viewing Angle - 85/85/85/85(IPS) - Aspect Ratio - 16:9 - Backlight Type - LED, Normally White - Control Board - No - TFT Driver IC - EK79007AD3 + EK73217BCGA or equivalent - Interface - 4-Lanes MIPI - Touch Panel - Without Touch Panel - Surface - Anti-Glare - Brightness - 1100 - cd/㎡ O-Film - No - Mounting Hole - No - Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80
