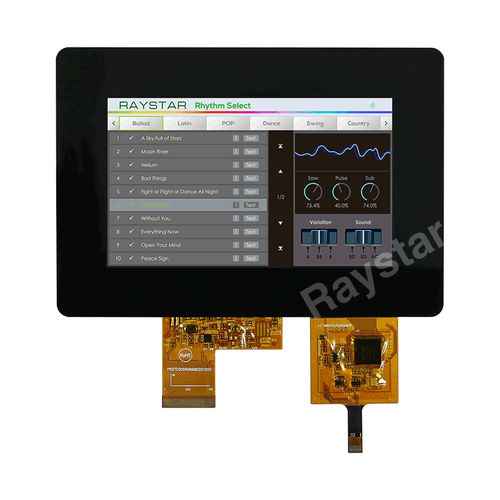

LCD module RFF500B-AIW-DNB
TFTLEDdot-matrix

LCD module
LCD module
LCD module
Add to favorites
Compare this product

Go to the Raystar Optronics, Inc. website for more information

Characteristics

Type
LCD, TFT, LED, dot-matrix, capacitive touch screen
Format
800 x 480
Screen size
5"
Applications
control
Other characteristics
interface, RGB

Description

Size (Diagonal) - 5 - inch Dot Matrix / Resolution - 800× 3(RGB) × 480 - dots Module Dimension - 147.0(W) × 104.0(H) × 4.8(D) - mm Outline Dimension - 120.7 × 75.8 - mm Viewing Area - 109 × 65.8 - mm Active Area - 108(W) × 64.8 (H) - mm Dot / Pixel Pitch - 0.135(W) × 0.135(H) - mm LCD Type - TFT, Normally White, Transmissive - View Direction - 12 o’clock - Gray Scale Inversion Direction - 6 o’clock - Aspect Ratio - 5:3 - Backlight Type - LED, Normally White - Control Board - No - TFT Driver IC - ILI6122 + ILI5960 - Interface - 24-bit RGB - PCAP FW Version - V 6. 0. 0. 0. 5.28.0.1 - PCAP IC - ILI2511 - PCAP Interface - USB (I2C available) - Detect Points - 10 - Points Touch Panel - Projected Capacitive Touch Screen, PCAP - Surface - Glare - Brightness - 400 - cd/㎡ Mounting Hole - No - Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80 - °C TFT Series - Standard TFT LCD
