Passive infrared sensor RTD6122C

uncooled

Product overview

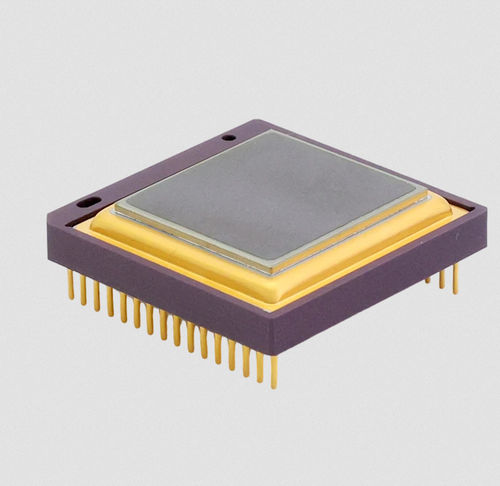

RTD6122C is a ceramic-packaged LWIR sensor based on a VOx microbolometer. It features a 640×512 array with 12μm pixel pitch, spectral sensitivity in the 8–14μm band, low power consumption and high operability, designed for thermography and outdoor thermal imaging systems.

Key features

• Array format: 640×512
• Pixel pitch: 12μm
• Detector frame rate: ≤60 Hz
• Power consumption: <170 mW (@50Hz, 25°C)
• Weight: ≤6 g
• Package size: 22×22×4.58 mm³ (without pins)

Technical specifications

• Module: RTD6122C
• Sensor technology: VOx microbolometer
• Spectral range: 8–14 μm
• Array format: 640×512
• Pixel pitch: 12 μm
• Operability: ≥99.5%
• NETD: <40 mK (@f/1.0, 50Hz, 300K)
• Thermal time constant: <12 ms
• Frame rate: ≤60 Hz
• Power consumption: <170 mW (@50Hz, 25°C)
• Output format: 14 bits
• Wide dynamic range mode: supports −40 ~ 600°C measurement (@f/1.0)
• Read mode: rolling shutter
• Mirroring: X and Y
• Non-uniformity correction: supported
• Operating temperature range: −40°C to +85°C
• Package type: 32-pin ceramic
• Size: 22×22×4.58 mm³ (without pins)
• Weight: ≤6 g

Applications

• Security and perimeter monitoring
• Fire detection and alarm systems
• Outdoor night vision and surveillance
• Industrial thermography and condition monitoring
