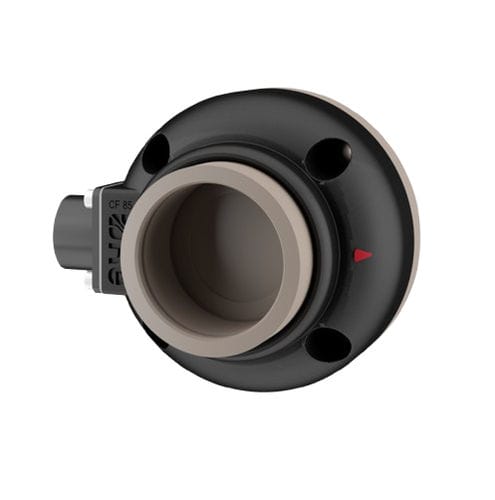

Tension load cell CF series
ringstrain gaugehigh-precision

tension load cell
tension load cell
tension load cell
Add to favorites
Compare this product


Characteristics

Type
tension
Form
ring
Technology
strain gauge
Other characteristics
high-precision, compact, nickel-plated, with mounting flanges
Rated force

Min.: 50 N

Max.: 25,000 N

Description

The flanged load cells, CF series, fitted at the end of a measuring roller, can precisely detect the resultant of the forces generated by pulling of the material depending on the winding angles. The commercial success of these cells is due to the combination of several elements: a compact design, which allows them to be easily fitted in narrow spaces, their user-friendliness and a high reliability; the latter is due to the high quality standards of our productions process, and to the mechanical stop for the overload protection which is integrated in our load cells. The CF.85 load cells is also available in some special version such us: the CF.85 IP50 for an high protection to dust, and the CF.85 IP54 for an high protection against water spray. CF load cells are available in various models and with a load range from 50 N to 25000 N

Catalogs

LOAD CELLS
LOAD CELLS
24 Pages
