Tension load cell F-2
beam typedigitalsmall

tension load cell
tension load cell
Add to favorites
Compare this product


Characteristics

Type
tension
Form
beam type
Output signal
digital
Other characteristics
precision, small, flexible
Rated force

Min.: 50 N

Max.: 500 N

Description

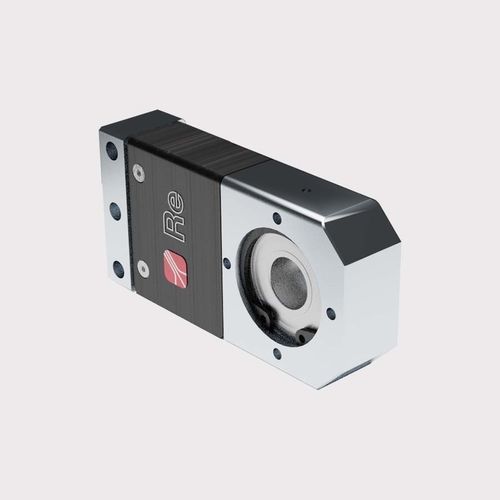

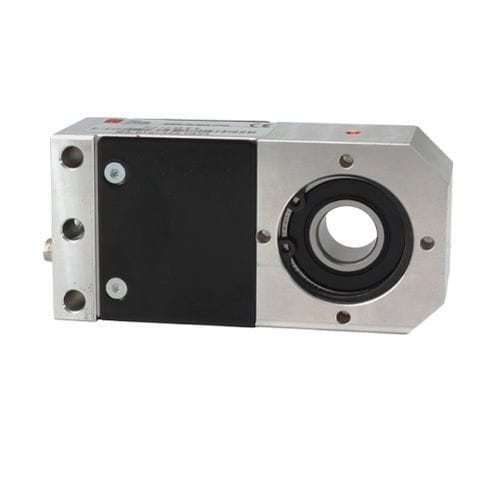

F-2 load cells, fitted at the end of a measuring roller, can precisely detect the resultant of the forces generated by pulling of the material depending on the winding angles. F-2 load cells have been designed for those applications that required small to medium web tensions and very limited spaces as, other than ensuring sturdiness and a great reliability and precision in detecting the material load, they guarantee an ultra-flat design to be installed on machines with tight space such as offset printing, digital printing, label printing, coating and plastic film machines. To facilitate their mounting on the machine, F-2 load cells has been studied with a flexible mounting system
